Differential Bearings: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| 2 Jaw Puller 205-D072 (D97L-4221-A) or equivalent |
|
| Adapter for 205-S127 205-105 (T76P-4020-A3) |
|
| Adapter for 205-S127 205-109 (T76P-4020-A9) |
|
| Adapter for 205-S127 205-110 (T76P-4020-A10) |
|
| Adapter for 205-S127 205-111 (T76P-4020-A11) |
|
| Adapter for 205-S127 205-129 (T79P-4020-A18) |
|
| Adapter for Differential Housing Spreader 205-368 (T96T-4000-A) |
|
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) |
|
| Gauge, Clutch Housing 308-021 (T75L-4201-A) |
|
| Gauge Tube, Drive Pinion 205-336 (T93P-4020-A) |
|
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) |
|
| Holding Fixture, Transmission 307-003 (T57L-500-B) |
|
| Installer, Differential Carrier Bearing 205-D044 (D81T-4221-A) or equivalent |
|
| Installer, Differential Side Bearing 205-010 (T57L-4221-A2) |
|
| Installer, Drive Pinion Bearing Cone 205-005 (T53T-4621-C) |
|
| Installer, Drive Pinion Bearing Cup 205-024 (T67P-4616-A) |
|
| Installer, Drive Pinion Flange 205-002 (TOOL-4858-E) |
|
| Installer, Drive Pinion Oil Seal 205-208 (T83P-4676-A) |
|
| Protector, Drive Pinion Thread 205-460 |
|
| Remover, Bearing 205-055 (T71P-4621-B) |
|
| Remover, Bearing Cup 308-047 (T77F-1102-A) |
|
| Remover, Transmission Fluid Pump 307-397 |
|
| Slide Hammer 100-001 (T50T-100-A) |
|
| Spreader, Differential Carrier 205-001 (TOOL-4000-E) |
|
| Spreader, Differential Housing (Plate) 205-335 (T93P-4000-A) (RH) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® High Contrast Hypoid Gear Marking Compound XG-14 |
- |
| Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada) |
WSP-M2C197-A |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

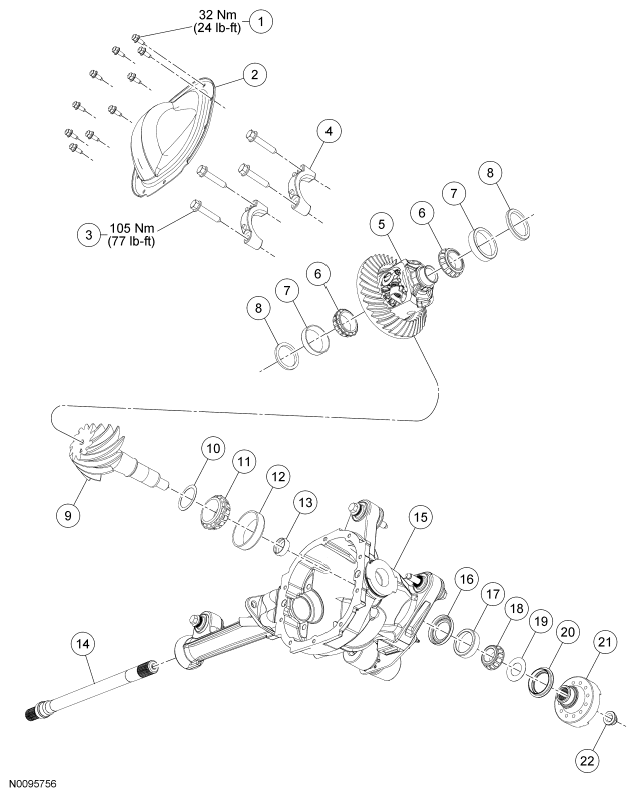

| Item | Part Number | Description |
|---|---|---|
| 1 | 390919 | Differential housing cover bolt (10 required) |
| 2 | 3N136 | Differential housing cover |
| 3 | - | Differential bearing cap bolt (part of 3A412) (4 required) |
| 4 | - | Differential bearing cap (part of 3A412) (2 required) |
| 5 | 3C202 | Differential assembly |
| 6 | 4221 | Differential bearings (2 required) |
| 7 | 4221 | Differential bearing cups (2 required) |
| 8 | 4A451 | Differential bearing shims (2 required) |
| 9 | - | Pinion gear (part of 4209) |
| 10 | 4663 | Drive pinion bearing adjustment shim |
| 11 | 4628 | Inner drive pinion bearing cup |
| 12 | 4630 | Inner drive pinion bearing |
| 13 | 4662 | Drive pinion collapsible spacer |
| 14 | 3A380 | Intermediate axle shaft |
| 15 | 3A412 | Differential housing |
| 16 | 4631 | Drive pinion oil baffle |
| 17 | 4616 | Drive pinion outer bearing cup |
| 18 | 4621 | Drive pinion outer bearing |
| 19 | 386989 | Drive pinion oil slinger |
| 20 | 3N134 | Drive pinion oil seal |
| 21 | 4858 | Drive pinion flange |
| 22 | 389546 | Drive pinion nut and washer |
