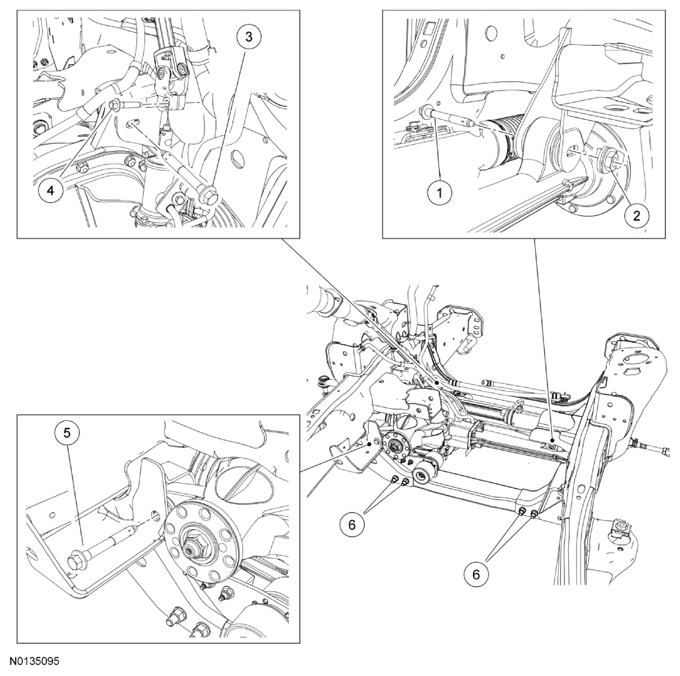

Axle Assembly: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W712724 |
Axle tube bushing bolt |
| 2 |
W712723 |
Axle tube bushing flagnut |
| 3 |
W712724 |
Rear axle housing bushing bolt |
| 4 |
N808684 |
Steering column coupler bolt |
| 5 |
W712743 |
Front axle housing bushing support bolt |
| 6 |
636893 |
Crossmember nuts (4 required) |
