Stub Shaft Pilot Bearing and Seal: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Handle 205-D055 (D81L-4000-A) |
|
| Installer, Axle Shaft Oil Seal 205-123 (T78P-1177-A) |
|
| Installer, Wheel Speed Sensor Ring 206-034 (T88P-20202-B) |
|
| Remover, Bearing Cup 308-047 (T77F-1102-A) |
|
| Remover, Transmission Fluid Pump 307-397 |
|
| Slide Hammer 100-001 (T50T-100-A) |

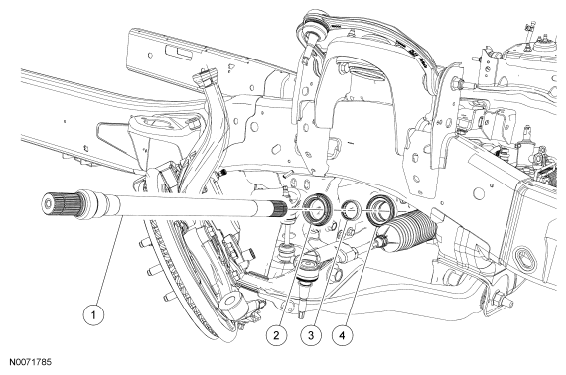

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A380 | Intermediate shaft |
| 2 | 3B112 | Stub shaft seal |
| 3 | 4B413 | Stub shaft bearing |
| 4 | 3B210 | Axle housing tube |
