Differential Carrier: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Shim Driver 205-228 (T85T-4067-AH) |

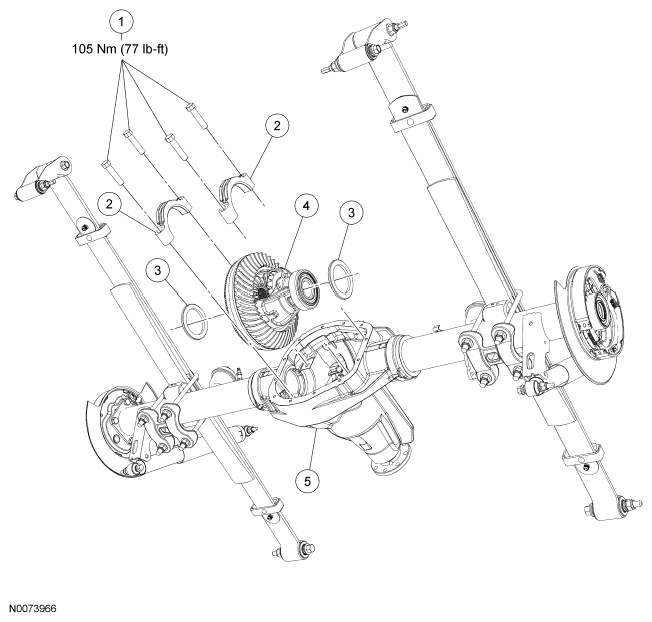

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Differential bearing cap bolts (part of 4010) (4 required) |
| 2 | - | Differential bearing caps (part of 4010) (2 required) |
| 3 | 4067 | Differential carrier bearing shims (2 required) |
| 4 | 4204 | Differential assembly |
| 5 | 4010 | Differential housing |
