Rear Wheel Bearing and Axle Shaft Seal: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Adapter For 303-224 (Handle) 205-153 (T80T-4000-W) |
|
| Installer, Axle Bearing 205-382 (T97T-1225-A) |
|
| Installer, Axle Oil Seal 205-381 (T97T-1177-A) |
|
| Remover, Axle Bearing 205-224 (T85T-1225-AH) |
|
| Slide Hammer 100-001 (T50T-100-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A and GL-5 |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

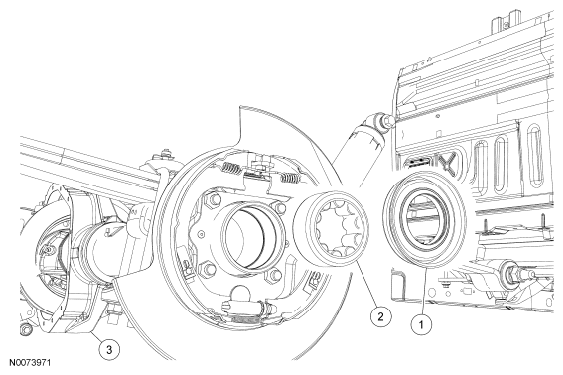

| Item | Part Number | Description |
|---|---|---|
| 1 | 1177 | Axle shaft oil seal |
| 2 | 1225 | Axle shaft bearing |
| 3 | 4010 | Differential housing |
