Differential Bearings: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| 2 Jaw Puller 205-D072 (D97L-4221-A) or equivalent |
|
| Adapter for 205-S127 205-111 (T76P-4020-A11) |
|
| Adapter for 205-S156 205-159 (T80T-4020-F42) |
|
| Adapter for 205-S156 205-160 (T80T-4020-F43) |
|
| Depth Gauge/Aligner, Drive Pinion 205-226 (T85T-4020-AH1) |
|
| Depth Gauge/Aligner, Drive Pinion 205-383 (T97T-4020-B) |
|
| Gauge Tube, Drive Pinion 205-377 (T97T-4020-A) |
|
| Installer, Differential Carrier Bearing 205-D044 (D81T-4221-A) or equivalent |
|
| Installer, Drive Pinion Bearing Cone 205-488 |
|
| Installer, Drive Pinion Bearing Cup 205-024 (T67P-4616-A) |
|
| Installer, Rear Axle Pinion Bearing Cup 205-387 (T97T-4628-A) |
|
| Installer, Rear Axle Pinion Bearing Cup 205-852 |
|
| Plate, Bearing/Oil Seal 205-090 (T75L-1165-B) |
|
| Protector, Drive Pinion Thread 205-229 (T85T-4209-AH) |
|
| Puller, Bearing 205-D064 (D84L-1123-A) |
|
| Step Plate 205-D061 (D83T-4205-C2) or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

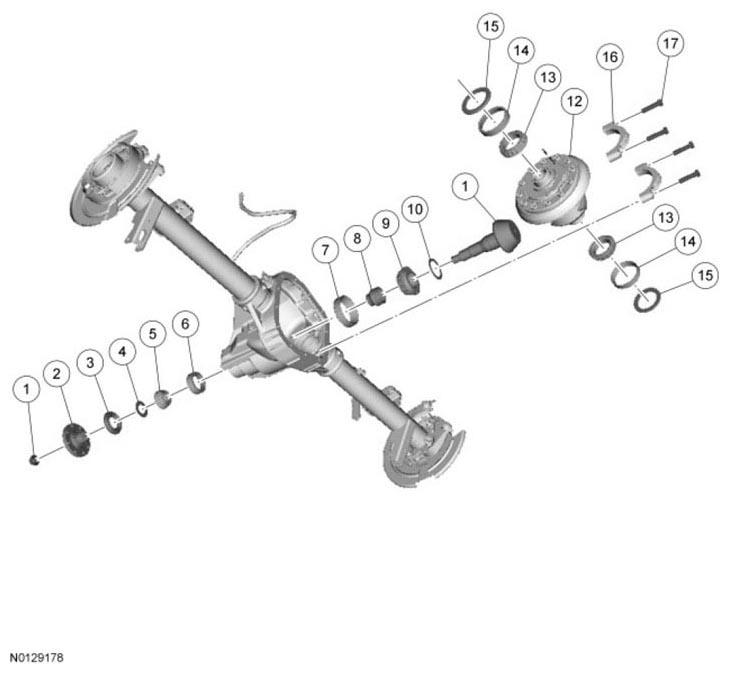

| Item | Part Number | Description |
|---|---|---|
| 1 | 389546 | Drive pinion nut |
| 2 | 4851 | Drive pinion flange |
| 3 | 4676 | Drive pinion oil seal |
| 4 | 4670 | Pinion oil slinger |
| 5 | 4621 | Outer pinion bearing |
| 6 | - | Outer pinion bearing cup (part of 4621) |
| 7 | - | Inner pinion bearing cup (part of 4630) |
| 8 | 4662 | Collapsible spacer |
| 9 | 4630 | Inner pinion bearing |
| 10 | 4663 | Pinion bearing adjustment shim |
| 11 | 4209 | Drive pinion |
| 12 | 4204 | Differential assembly |
| 13 | 4220 | Differential carrier bearings (2 required) |
| 14 | - | Differential carrier bearing cups (Part of 4220) (2 required) |
| 15 | 4067 | Differential carrier bearing shims (2 required) |
| 16 | - | Differential bearing cap (part of 4010) (2 required) |
| 17 | - | Differential bearing cap bolts (part of 4010) (4 required) |
