Axle Shaft: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

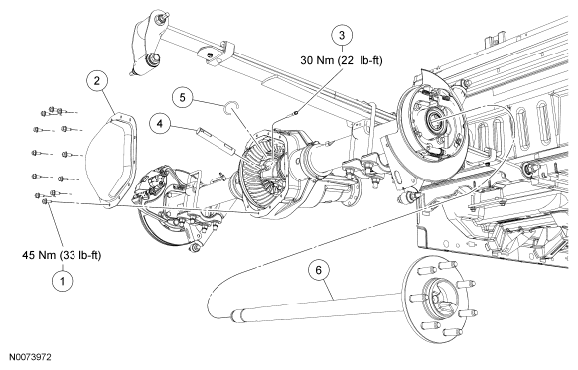

| Item | Part Number | Description |
|---|---|---|
| 1 | 4346 | Differential housing cover bolt (12 required) |
| 2 | 4033 | Differential housing cover |
| 3 | 4241 | Differential pinion shaft locking bolt |
| 4 | 4211 | Differential pinion shaft |
| 5 | 4N237 | Axle shaft C-washer |
| 6 | 4234 | Axle shaft |
