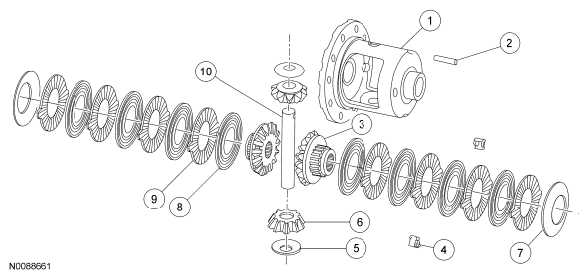

Traction-Lok Differential Assembly
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 4204 | Differential case |
| 2 | 4241 | Differential pinion shaft lock bolt (part of 4215) |
| 3 | - | Differential side gear (part of 4215) |
| 4 | - | Retainer clip (part of 4947) |
| 5 | 4230 | Differential pinion thrust washer (part of 4215) |
| 6 | - | Differential pinion gear (part of 4215) |
| 7 | - | Plate preload spacer (part of 4947) |
| 8 | - | Clutch disc (part of 4947) |
| 9 | - | Clutch plate (part of 4947) |
| 10 | 4211 | Differential pinion shaft |
