Differential Case and Ring Gear - Electronic Locking Differential (ELD): Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| 2 Jaw Puller 205-D072 (D97L-4221-A) or equivalent |
|
| Dial Indicator Gauge With Holding Fixture 100-002 (TOOL-4201-C) |
|
| Installer, Differential Carrier Bearing 205-D044 (D81T-4221-A) or equivalent |
|
| Puller, Bearing 205-D064 (D84L-1123-A) |
|
| Step Plate 205-D061 (D80L-630-8) or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Maximum Strength Retaining Compound Loctite® 638™ |
- |
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A and GL-5 |

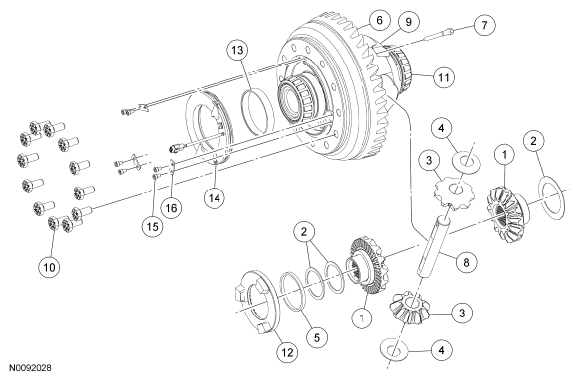

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Differential side gears (part of kit 4215) |
| 2 | - | Differential side gear thrust washers (part of kit 4215) |
| 3 | - | Differential pinion gears (part of kit 4215) |
| 4 | - | Differential pinion thrust washers (part of kit 4215) |
| 5 | - | Differential pinion spring (part of kit 4215) |
| 6 | 4209 | Differential ring gear |
| 7 | 4241 | Differential pinion shaft lock bolt |
| 8 | 4211 | Differential pinion shaft |
| 9 | 4204 | Differential case |
| 10 | 4216 | Differential ring gear bolt (12 required) |
| 11 | 4220 | Differential bearing |
| 12 | - | Cam-ring (part of kit 4880) |
| 13 | - | Plunger (part of kit 4880) |
| 14 | - | Coil (part of kit 4880) |
| 15 | - | Coil bolt (part of kit 4880) (6 required) |
| 16 | - | Stopper (part of kit 4880) (3 required) |
