Differential Carrier: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
|
|
Shim Driver
205-220 (T85L-4067-AH) |
Courtesy of FORD MOTOR CO.

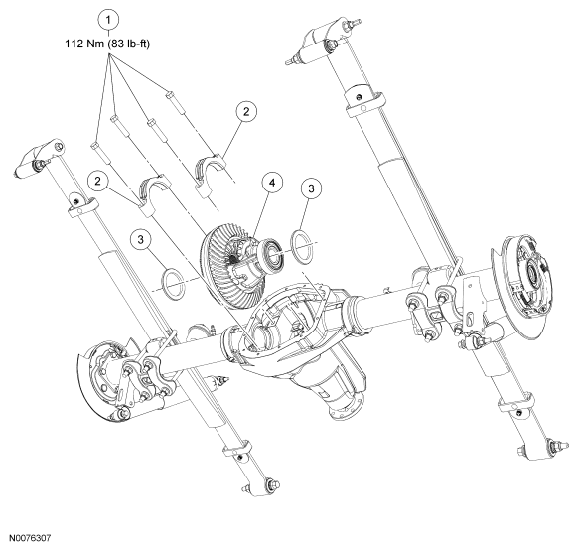

| Item |
Part Number |
Description |
| 1 |
- |
Differential bearing cap bolts (part of 4010) (4 required) |
| 2 |
- |
Differential bearing caps (part of 4010) (2 required) |
| 3 |
4067 |
Differential carrier bearing shims (2 required) |
| 4 |
4204 |
Differential assembly |
