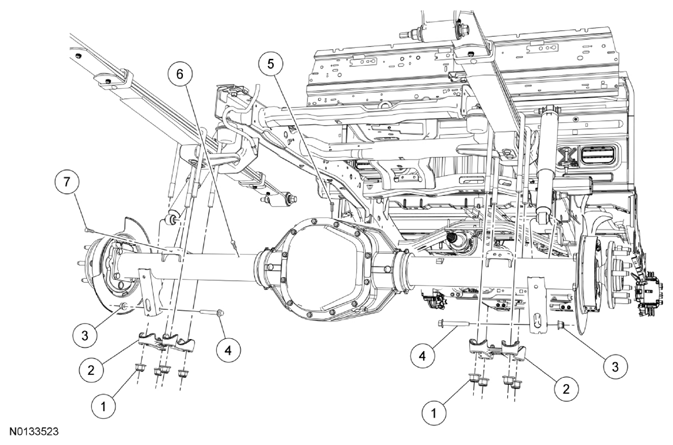

Axle Assembly: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W705518 |
U-bolt nuts (8 required) |
| 2 |
5798 |
U-bolt plates (2 required) |
| 3 |
W520214 |
Lower shock absorber nuts (2 required) |
| 4 |
W506545 |
Lower shock absorber bolts (2 required) |
| 5 |
57632 |
Brake tube/parking brake cable bracket bolt |
| 6 |
4022 |
Axle vent |
| 7 |
W712215 |
Brake hose bracket bolt |
