Differential Housing Cover: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Additive Friction Modifier XL-3 (US); CXL-3 (Canada) |
EST-M2C118-A |
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A and GL-5 |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

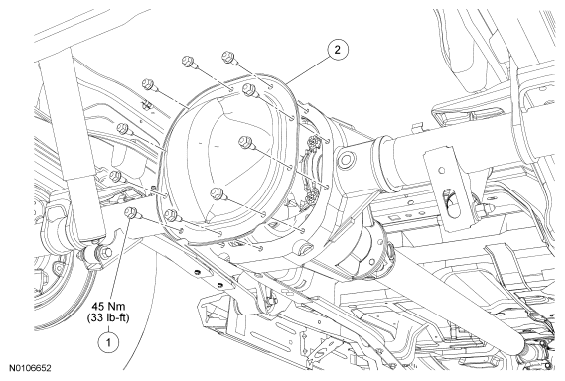

| Item | Part Number | Description |
|---|---|---|
| 1 | 4346 | Differential housing cover bolt (10 required) |
| 2 | 4033 | Differential housing cover |
