Differential Case and Ring Gear - Conventional: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS

G07950734
Dial Indicator Gauge With Holding Fixture
100-002 (TOOL-4201-C)
G06125248
Gauge, Differential (Traction-Lock)
205-384 (T97T-4205-A)
G06125249
Gauge, Differential (Traction Lock)
205-386 (T97T-4205-D)
G06166769
Installer, Differential Side Bearing
205-010 (T57L-4221-A2)
G06098293
Remover, Differential Bearing
205-116 (T77F-4220-B1)
G06142828
Step Plate
205-D016 (D80L-630-5) or equivalent
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL (US); CXY-75W140-1L (Canada)
WSL-M2C192-A and GL-5
Premium Long-Life Grease
XG-1-C or XG-1-K (US); CXG-1-C (Canada)
ESA-M1C75-B
Threadlock and Sealer
TA-25
WSK-M2G351-A5

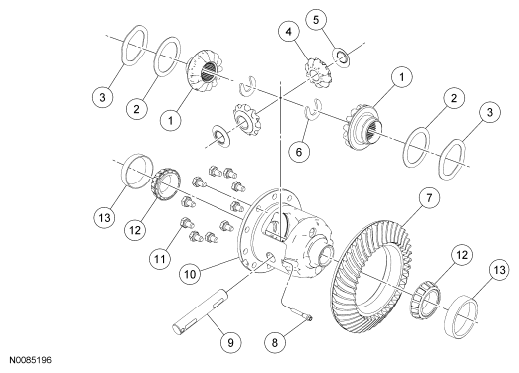

Fig 1: Exploded View Of Differential Case And Ring Gear - Conventional
G06166853Courtesy of FORD MOTOR CO.
Item Part Number Description
1 4236 Differential side gears
2 4228 Differential side gear thrust washers
3 - Differential side gear wave washers
4 4215 Differential pinion gear (2 required)
5 4230 Differential pinion thrust washer (2 required)
6 4N237 Axle shaft U-washer (2 required)
7 4209 Differential ring gear
8 4241 Differential pinion shaft lock bolt
9 4211 Differential pinion shaft
10 4204 Differential case
11 4216 Differential ring gear bolt (10 required)
12 4221 Differential bearings
13 4222 Differential bearing cups

Initial disassembly

NOTE: If the differential ring gear backlash between teeth is greater than specification, remove the ring gear to check the differential case flange runout. Do not disassemble the differential carrier assembly.
  1. Remove the differential carrier. Tag the differential shims and bearing cups for location. For additional information, refer to DIFFERENTIAL CARRIER  .
  2. Remove and discard the 10 differential ring gear bolts.
    Fig 2: Locating Differential Ring Gear Bolts
    G06166776Courtesy of FORD MOTOR CO.
  3. NOTE: Care should be taken not to damage the differential ring gear bolt hole threads.
    Fig 3: Inserting Punch In Differential Ring Gear Bolt Holes
    G06166777Courtesy of FORD MOTOR CO.
  4. Insert a punch in the differential ring gear bolt holes and drive the differential ring gear off.
  5. If checking differential case flange runout, install the bearing cups in their original location and install the differential assembly.
    1. Install the bearing caps and differential shims.
      • Rotate the differential assembly to verify the bearings have seated.
    2. Install the Dial Indicator Gauge With Holding Fixture and record the differential case runout.
      Fig 4: Checking Differential Case Runout
      G06166856Courtesy of FORD MOTOR CO.

    Final disassembly

  6. Using the Differential Bearing Remover and Step Plate, remove the differential bearings.
    Fig 5: Removing Differential Bearings
    G06166857Courtesy of FORD MOTOR CO.
  7. Remove the differential pinion shaft lock bolt.
    Fig 6: Locating Differential Pinion Shaft Lock Bolt
    G06401671Courtesy of FORD MOTOR CO.
  8. Remove the differential pinion shaft.
    Fig 7: Removing Differential Pinion Shaft
    G06166859Courtesy of FORD MOTOR CO.
  9. Install the Differential Gauge in a suitable vise.
    Fig 8: Installing Differential Gauge In Suitable Vise
    G06166860Courtesy of FORD MOTOR CO.
  10. Install the differential case on the Differential Gauge.
    Fig 9: Installing Differential Case On Differential Gauge
    G06125283Courtesy of FORD MOTOR CO.
  11. NOTE: Apply a small amount of grease to the centering hole of the Differential Gauge.
    Fig 10: Installing Differential Gauge Step Plate In Bottom Differential Side Gear
    G06166862Courtesy of FORD MOTOR CO.
  12. Install the Differential Gauge step plate in the bottom differential side gear.
  13. Install the Differential Gauge nut in the upper differential side gear. Hold the nut in position while installing the Differential Gauge hex screw. Tighten the hex-head screw until contact is made with the Step Plate.
    Fig 11: Installing Differential Gauge Nut In Upper Differential Side Gear
    G06167097Courtesy of FORD MOTOR CO.
  14. Rotate and remove the differential pinion gears and differential pinion gear thrust washers.
    Fig 12: Locating Differential Pinion Gears And Differential Pinion Thrust Washer
    G06166864Courtesy of FORD MOTOR CO.
  15. Remove the differential side gears, the differential side gear washers and the differential side gear wave washers.
    Fig 13: Removing Differential Side Gears And Washers
    G06166865Courtesy of FORD MOTOR CO.
