Steering Column Multifunction Switch: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Steering wheel removed for clarity.

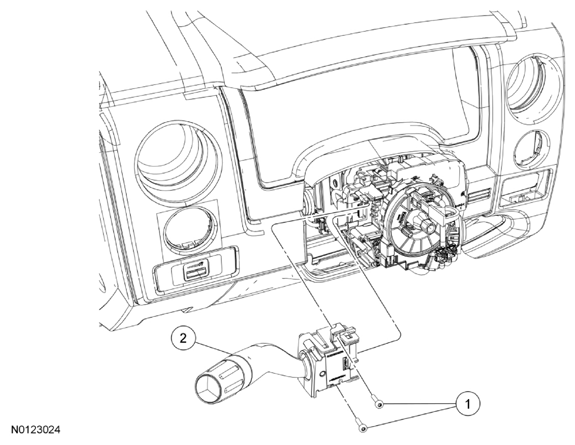

Fig 1: Identifying Steering Column Multifunction Switch And Screws
G07958373Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705132 Multifunction switch screws (2 required)
2 13K359 Multifunction switch
