Steering Column Control Module (SCCM): Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

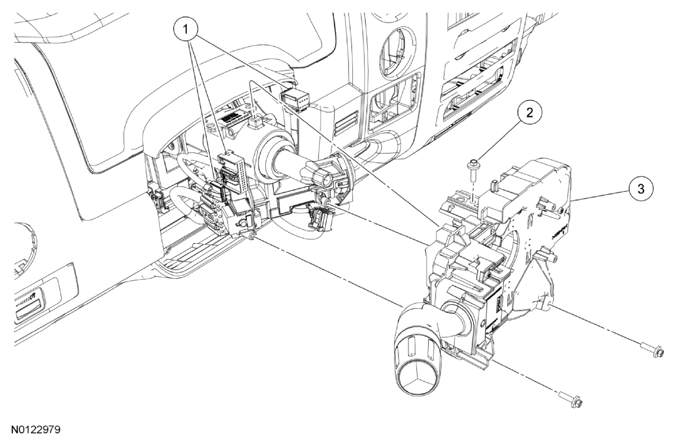

Fig 1: Identifying Steering Column Control Module (SCCM) Removal And Installation
G07958374Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Steering Column Control Module (SCCM) electrical connectors (3 required) (part of 14401)
2 W715057 SCCM bolts (3 required)
3 3F791 SCCM
