High Mounted Stoplamp: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

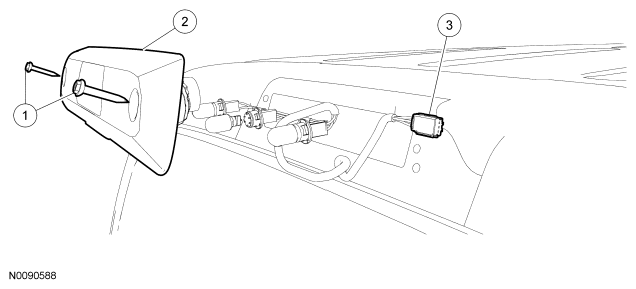

Fig 1: Identifying High Mounted Stoplamp With Screws And Electrical Connector
G06458211Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W713620 High mounted stoplamp screws (2 required)
2 13A613 High mounted stoplamp
3 - High mounted stoplamp electrical connector (part of 14335)
