Headlamp Assembly: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

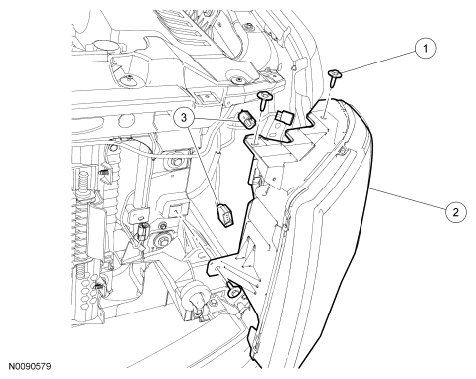

Fig 1: Identifying Headlamp Assembly With Bolts And Electrical Connectors

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W703277	Headlamp bolts (3 required)
2	13008	Headlamp assembly
3	-	Electrical connectors (part of 12A581)
