Starter Motor - 5.0L (4V), 6.2L (2V): Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

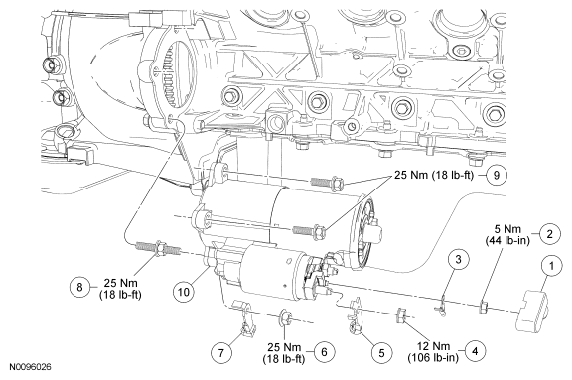

Fig 1: Starter Motor Related Replacement Components With Torque Specifications - 5.0L (4V), 6.2L (2V)
| Item | Part Number | Description |
|---|---|---|
| 1 | 11N087 | Terminal cover |
| 2 | W705790 | Starter solenoid S-terminal nut |
| 3 | 14463 | Starter solenoid S-terminal eyelet |
| 4 | W706414 | Starter solenoid B+ terminal nut |
| 5 | 14463 | Starter solenoid B+ terminal eyelet |
| 6 | N805024 | Starter motor ground cable nut |
| 7 | 14463 | Starter motor ground cable eyelet |
| 8 | W704941 | Starter motor mounting stud bolt |
| 9 | W704942 | Starter motor mounting bolts (2 required) |
| 10 | 11002 | Starter motor |
