Instrument Panel Cluster (IPC): Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If installing a new Instrument Panel Cluster (IPC), all vehicle keys are erased during the parameter reset procedure. Verify at least 2 of the vehicle keys are available prior to carrying out this procedure.
  1. If installing a new IPC, upload the IPC configuration information to the scan tool. For additional information, REFER to MODULE CONFIGURATION .
  2. Tilt and telescope the steering column to the full downward and rearward position.
  3. If equipped with a column shift, apply the parking brake and lower the gear shift to the lowest gear.
  4. Remove the 2 screws and the IPC center finish panel.
    • Release the gap hider retainers.
    Fig 1: Locating Screws And IPC Center Finish Panel
    G07964106Courtesy of FORD MOTOR CO.
  5. Remove the 4 screws and the IPC.
    • Disconnect the electrical connector.

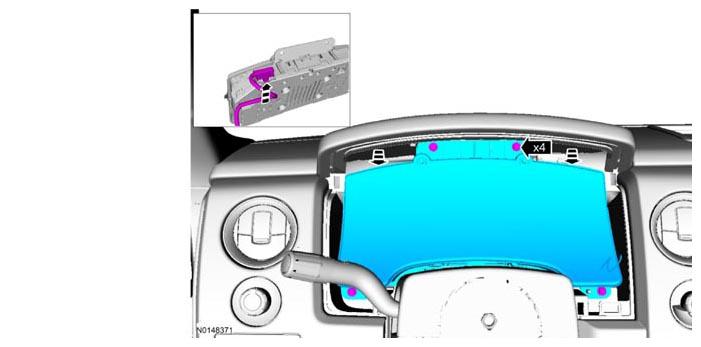

Fig 2: Locating Screws, IPC And Electrical Connector
G07964107Courtesy of FORD MOTOR CO.
