Instrument Panel Cluster (IPC): Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Position the IPC, connect the electrical connector and install the 4 screws.

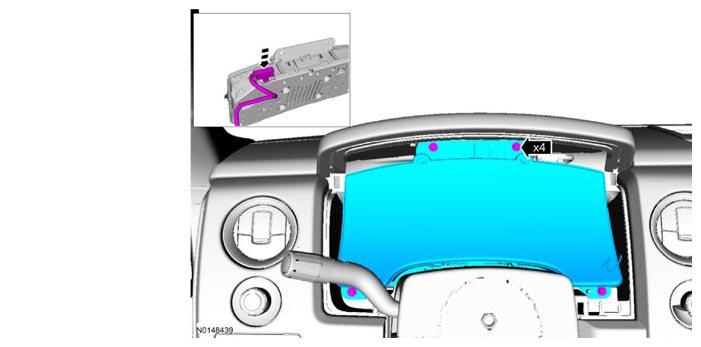

Fig 1: Locating Screws, IPC And Electrical Connector
Courtesy of FORD MOTOR CO.
Install the IPC finish panel and the 2 screws.
- Attach the gap hider retainers.

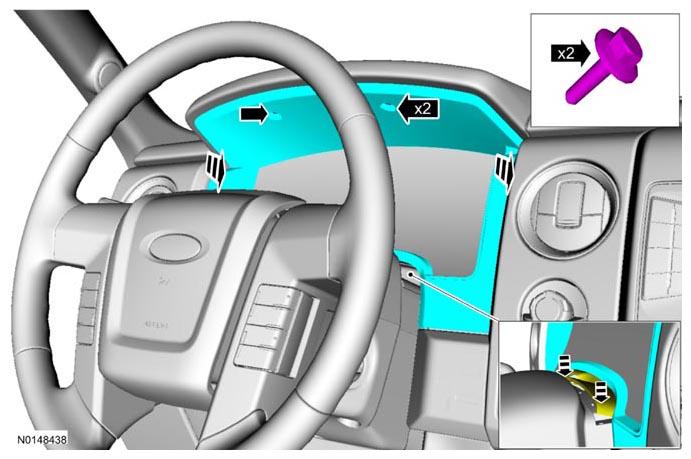

Fig 2: Locating IPC Finish Panel And Screws
Courtesy of FORD MOTOR CO.
If installing a new IPC, download the IPCconfiguration information from the scan tool into the new IPC. For additional information, refer to Programmable Module Installation (PMI) in MODULE CONFIGURATION .

NOTE: If a new IPC is installed, the IPC and the PCM require a parameter reset to allow the IPC and the PCM to recognize each other. Failure to carry out the parameter reset to the IC and the PCM may result in a no start condition.

NOTE: If equipped, the vehicles Passive Anti-Theft System (PATS) keys must be programmed to the new IPC.

If installing a new IPC, carry out the parameter reset and key programming procedure. For additional information, REFER to ANTI-THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS) .
