Optional IPC
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

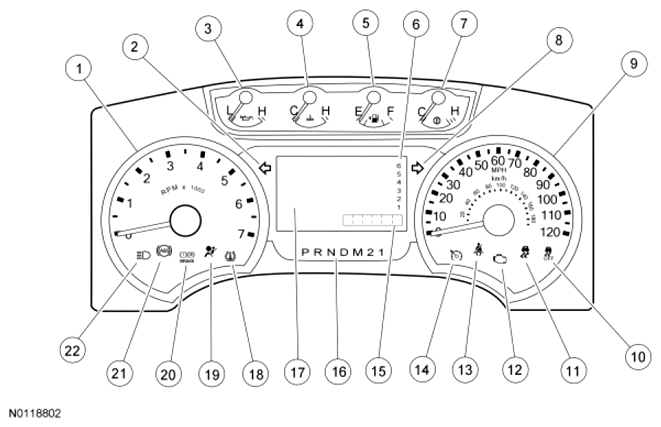

Base F-150 Instrument Panel Cluster (IPC) shown in illustration, SVT Raptor IPC similar. Additional warning indicators, which are displayed in the message center, are listed below under "IPC Message Center Indicators".
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tachometer |
| 2 | - | LH turn indicator |
| 3 | - | Oil pressure gauge |
| 4 | - | Engine temperature gauge |
| 5 | - | Fuel gauge |
| 6 | - | Select shift display |
| 7 | - | Transmission temperature gauge |
| 8 | - | RH turn indicator |
| 9 | - | Speedometer |
| 10 | - | Stability/traction control disabled indicator |
| 11 | - | Stability/traction control indicator |
| 12 | - | Malfunction Indicator Lamp (MIL) |
| 13 | - | Safety belt warning indicator |
| 14 | - | Cruise control indicator |
| 15 | - | Message center indicator display area |
| 16 | - | PRNDL display |
| 17 | - | Message center display area |
| 18 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 19 | - | Air bag warning indicator |
| 20 | - | Brake warning indicator |
| 21 | - | ABS warning indicator |
| 22 | - | High beam indicator |
