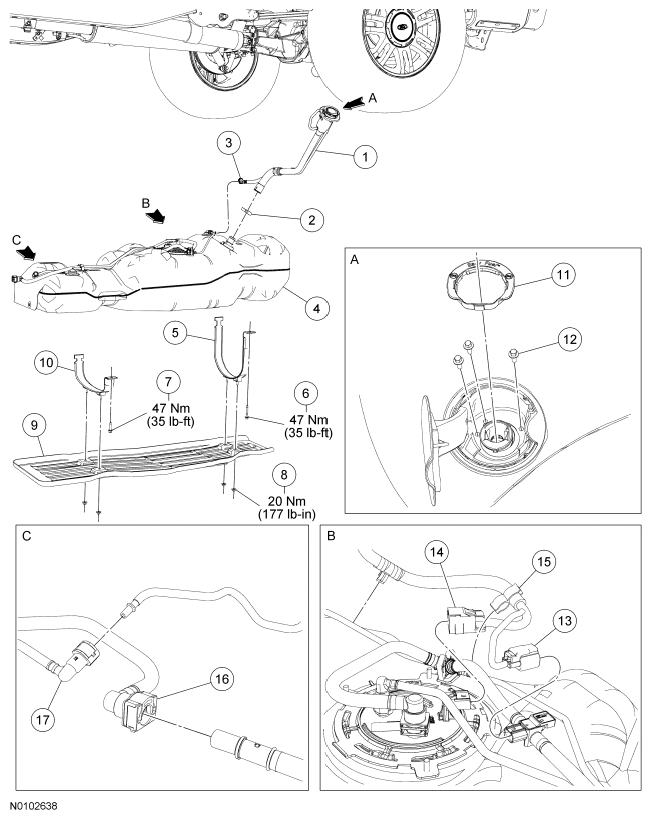

Fuel Tank and Filler Pipe - Exploded View
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9034 | Fuel tank filler pipe assembly |
| 2 | W525937 | Fuel tank filler pipe hose clamp |
| 3 | - | Fuel tank filler pipe vent tube quick connect coupling (part of 9034) |
| 4 | 9002 | Fuel tank assembly |
| 5 | 9057 | Rear fuel tank support strap |
| 6 | W709593 | Fuel tank support strap bolt |
| 7 | W710428 | Fuel tank support strap bolt |
| 8 | W705047 | Fuel tank skid plate nut (4 required) (if equipped) |
| 9 | 9A147 | Fuel tank skid plate (if equipped) |
| 10 | 9054 | Front fuel tank support strap |
| 11 | 9K072 | Information bezel |
| 12 | W505253 | Fuel tank filler pipe screw (3 required) |
| 13 | - | Fuel Tank Pressure (FTP) and vapor tube assembly electrical connector (part of 14405) |
| 14 | - | Fuel pump module electrical connector (part of 14405) |
| 15 | - | Wiring harness retainer (part of 14405) |
| 16 | - | FTP and vapor tube assembly-to-Evaporative Emission (EVAP) canister vapor tube quick connect coupling (part of 9J279) |
| 17 | - | Fuel tank fuel supply tube-to-center fuel supply tube quick connect coupling (part of 9J279) |
- For additional information, refer to the appropriate procedures in this information.
