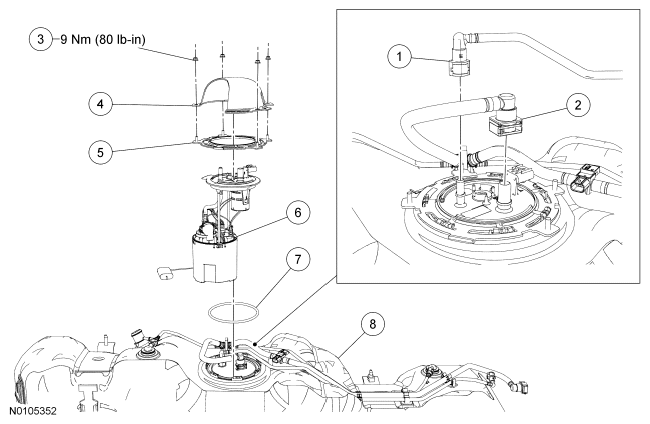

Fuel Pump Module - Exploded View
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel supply tube quick connect coupling (part of 9J279) |
| 2 | - | Fuel Tank Pressure (FTP) sensor and vapor tube assembly quick connect coupling (part of 9J279) |
| 3 | W520101 | Fuel pump module cover nuts (4 required) (if equipped) |
| 4 | 9B007 | Fuel pump module cover (if equipped) |
| 5 | 9B077 | Fuel pump module locking ring |
| 6 | 9H307 | Fuel pump module |
| 7 | 9276 | Fuel pump module O-ring seal |
| 8 | 9002 | Fuel tank |
- For additional information, refer to the appropriate procedures in this information.
