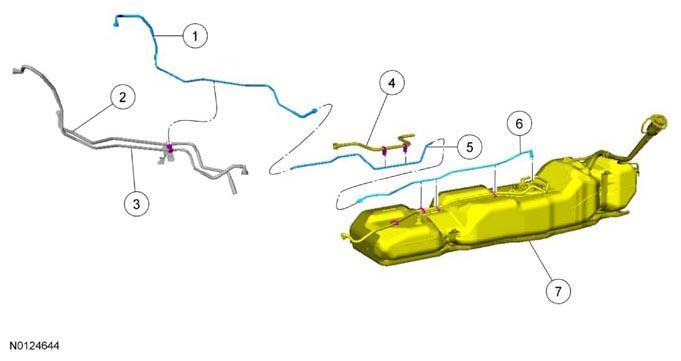

Fuel Lines - Exploded View
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
5.0L (4V) shown in illustration, others similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9J280 | Front fuel supply tube |
| 2 | 9S327 | Fresh air tube |
| 3 | 9D676 | Fuel vapor tube |
| 4 | - | Fuel vapor tube |
| 5 | - | Center fuel supply tube |
| 6 | 9S278 | Rear supply tube |
| 7 | 9002 | Fuel tank |
- For additional information, refer to the appropriate procedures in this information.
