Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

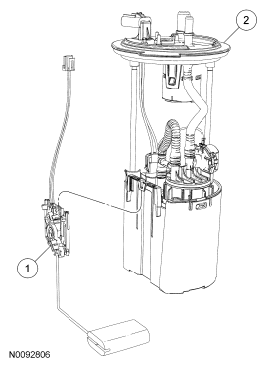

Fig 1: Identifying Fuel Level Sender Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9A299	Fuel level sender
2	9H307	Fuel Pump (FP) module

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

Remove the Fuel Pump (FP) module. For additional information, refer to Fuel Pump Module .
Disconnect the fuel level sender-to-FP module electrical connector.

Fig 2: Locating Fuel Level Sender-To-FP Module Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the FP module retainer clip and slide the fuel level sender off of the FP module.

Fig 3: Locating FP Module Retainer Clip
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
