Wheel Bearing and Wheel Hub: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

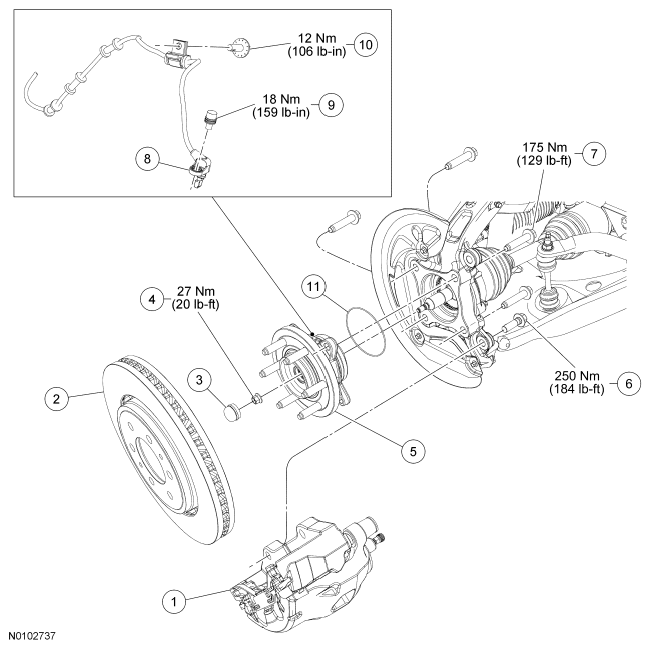

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake caliper and anchor plate assembly |
| 2 | 1125 | Brake disc |
| 3 | 1131 | Dust cap |
| 4 | N808405 | Halfshaft nut |
| 5 | 2B663 | Wheel bearing and wheel hub |
| 6 | W710862 | Brake caliper anchor plate bolt (2 required) |
| 7 | W708690 | Wheel bearing and wheel hub bolt (4 required) |
| 8 | 2C204 | Wheel speed sensor |
| 9 | W710279 | Wheel speed sensor bolt |
| 10 | - | Wheel speed sensor harness bracket bolt (part of 2C204) |
| 11 | 1177 | O-ring seal |
