All Except SVT Raptor
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

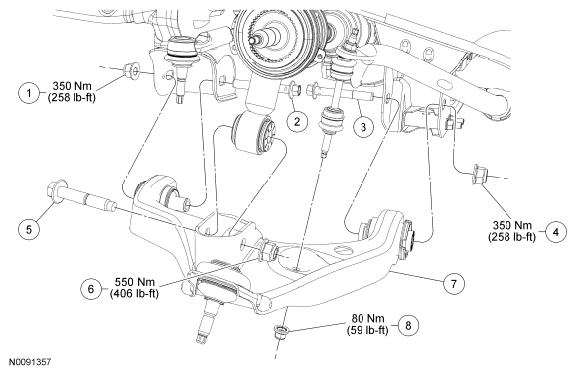

| Item | Part Number | Description |
|---|---|---|
| 1 | W711310 | Lower arm forward nut |
| 2 | W711399 | Lower arm forward bolt |
| 3 | W709877 | Lower arm rearward bolt |
| 4 | W711310 | Lower arm rearward nut |
| 5 | W712682 | Shock absorber lower bolt |
| 6 | W520217 | Shock absorber lower nut |
| 7 | 3051 LH/3042 RH | Lower arm |
| 8 | N807144 | Stabilizer bar link lower nut |
