Wheel Studs: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
|
|
Installer/Remover, C-Frame and Screw
211-023 (T74P-3044-A1) |
Courtesy of FORD MOTOR CO.

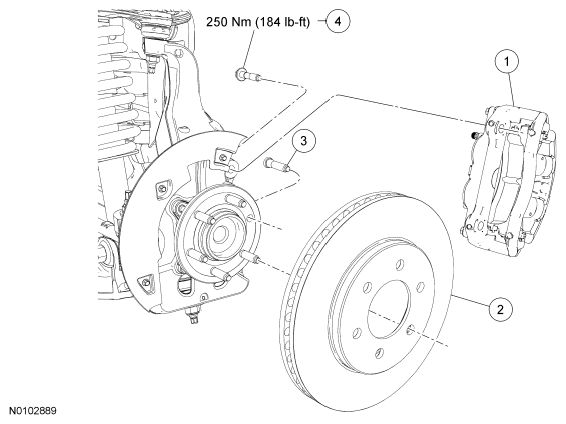

| Item |
Part Number |
Description |
| 1 |
- |
Brake caliper and anchor plate assembly |
| 2 |
1125 |
Brake disc |
| 3 |
W707287 |
Wheel stud |
| 4 |
W710862 |
Brake caliper anchor plate bolt (2 required) |
