Upper Arm: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
|
|
Separator, Ball Joint
204-592 |
Courtesy of FORD MOTOR CO.

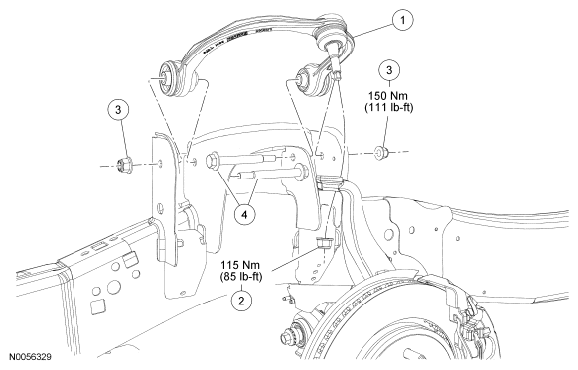

| Item |
Part Number |
Description |
| 1 |
3085 LH/3084 RH |
Upper arm |
| 2 |
W520215 |
Upper ball joint nut |
| 3 |
W520215 |
Upper arm-to-frame nuts (2 required) |
| 4 |
W707841 |
Upper arm-to-frame bolts (2 required) |
