Shock Absorber and Spring Assembly: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Separator, Ball Joint 204-592 |

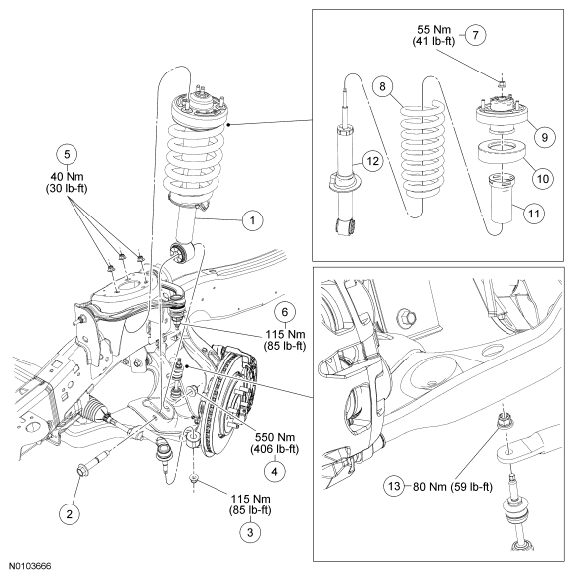

| Item | Part Number | Description |
|---|---|---|
| 1 | 18B036 | Shock absorber and spring assembly |
| 2 | W712682 | Shock absorber lower bolt |
| 3 | W707251 | Tie-rod end nut |
| 4 | W520217 | Shock absorber lower nut |
| 5 | W712334 | Shock absorber upper mount nuts (3 required) |
| 6 | W520215 | Upper ball joint nut |
| 7 | W712134 | Shock rod nut |
| 8 | 5310 | Spring |
| 9 | 18A099 | Upper mount |
| 10 | 18A154 | Insulator |
| 11 | 18A047 | Dust boot |
| 12 | 18045 | Shock absorber |
| 13 | N807144 | Stabilizer bar link upper nut |
