Power Steering Pump: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

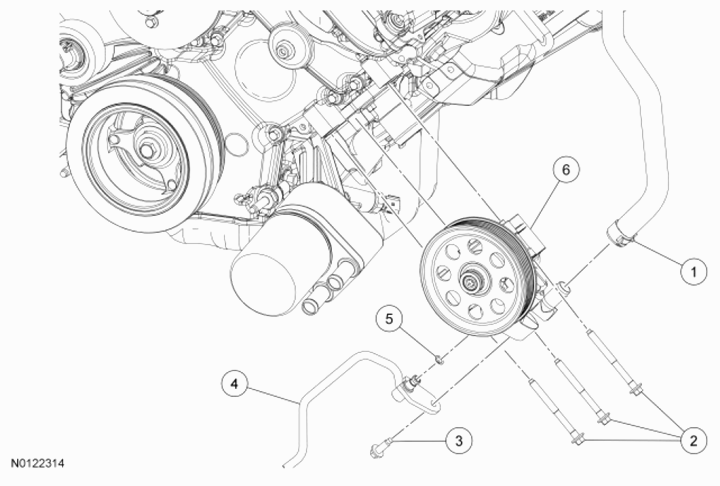

| Item | Part Number | Description |
|---|---|---|
| 1 | 3691 | Power steering pump supply hose |
| 2 | W715068 | Power steering pump bolt (3 required) |
| 3 | W714824 | Pressure line clamp plate-to-pump bolt |
| 4 | 3A719 | Pressure line |
| 5 | 3F887 | Pressure line-to-pump O-ring seal (also part of 3A719) |
| 6 | 3A674 | Power steering pump and pulley assembly |
