Power Steering Pump to Steering Gear Pressure Line: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

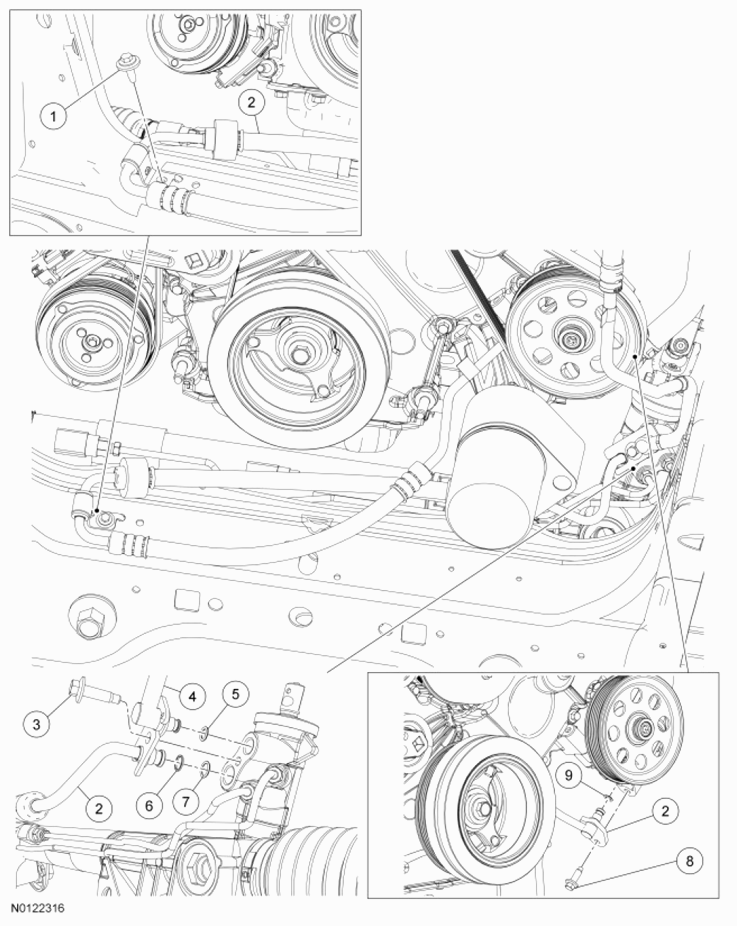

| Item | Part Number | Description |
|---|---|---|
| 1 | W706681 | Pressure line bracket-to-crossmember bolt |
| 2 | 3A719 | Pressure line |
| 3 | W712679 | Steering line clamp plate-to-steering gear bolt |
| 4 | 3A713C | Return line |
| 5 | 3F886 | Return line O-ring seal (also part of 3A713C) |
| 6 | 3B602 | Back-up O-ring seal |
| 7 | 3F886 | Pressure line-to-gear O-ring seal (also part of 3A719) |
| 8 | W714824 | Pressure line clamp plate-to-pump bolt |
| 9 | 3F887 | Pressure line-to-pump O-ring seal |
