Power Steering Fluid Reservoir: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

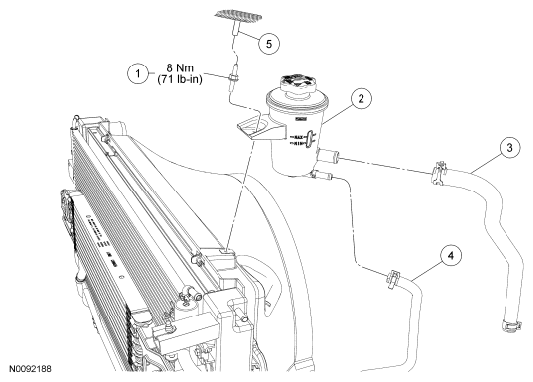

| Item | Part Number | Description |
|---|---|---|
| 1 | W710897 | Power steering fluid reservoir stud bolt |
| 2 | 3E764 | Power steering fluid reservoir |
| 3 | 3691 | Power steering fluid reservoir-to-pump supply hose |
| 4 | 3A713 | Power steering fluid cooler-to-power steering fluid reservoir hose |
| 5 | - | Wiring harness retainer (part of 14A067) |
