Jacking Points - Rear

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not use the differential housing as a lift point. Leaks or damage to the rear axle cover and adjoining differential housing surface may occur if a floor jack or any lifting device is allowed to contact the cover at any point where the cover joins the housing.

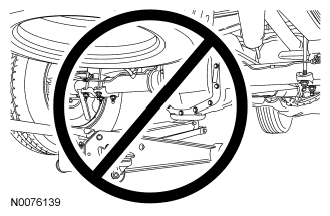

Fig 1: Caution For Rear Jacking Points
G06452059Courtesy of FORD MOTOR CO.

The rear jacking points are located on the rear axle.

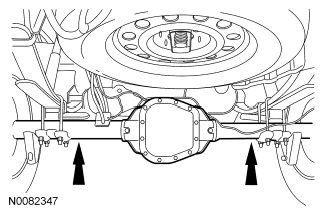

Fig 2: Locating Rear Jacking Points
G06452060Courtesy of FORD MOTOR CO.
