Jacking Points - Front

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not use the control arm as a jacking point. Damage to the vehicle may occur.

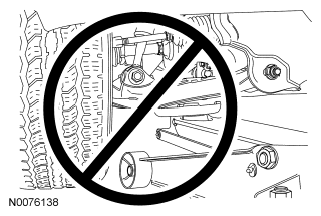

Fig 1: Caution For Front Jacking Points

Courtesy of FORD MOTOR CO.

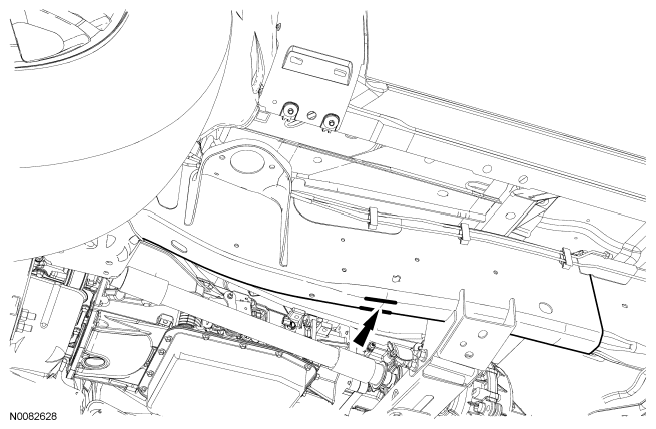

Fig 2: Locating Front Jacking Points

Courtesy of FORD MOTOR CO.

The jacking point is a flat portion on the frame, located behind the front tire and wheel and right below the arrow marked on the frame.
