Transmission Insulator and Retainer Four-Wheel Drive (4WD)

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

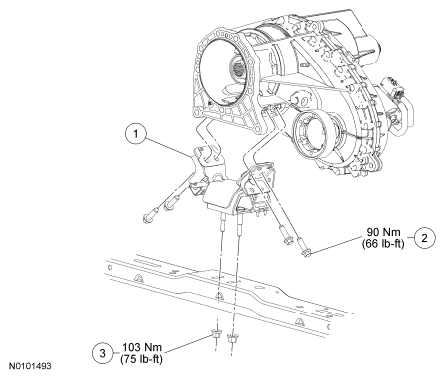

Fig 1: Transmission Insulator And Retainer Four-Wheel Drive Related Replacement Components With Torque Specifications
G06170365Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6068 Transmission insulator and retainer
2 W713728 Transmission insulator and retainer bolt
3 N621945 Transmission insulator and retainer nut
