Pinpoint Test E: OSS Sensor

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Transmission Vehicle Harness  Connector illustration within the Transmission Connector Layouts  procedure .
NOTE: Refer to the Transmission Leadframe Connector  illustration within the Transmission Connector Layouts  procedure .
NOTE: If the scan tool is unable to access the transmission PIDs, refer to INTRODUCTION - GASOLINE MODELS .
NOTE: Always drive the vehicle in a safe manner according to driving conditions and obey all traffic laws.
NOTE: Read and record all DTCs.
NOTE: If DTCs P0705, P0706, P0707, P0708, P0709, P1702, P1705 and/or P1921 are set, diagnose those DTCs first.
  1. E1 DRIVE CYCLE TEST
    • Connect the scan tool.
    • Enter the following diagnostic mode on the scan tool: OSS PID: OSS_SRC.
    • Monitor the Output Shaft Speed (OSS) sensor PID while road testing the vehicle. Drive the vehicle so the transmission upshifts and downshifts through all the gears.
    • Does the OSS sensor RPM increase and decrease with engine RPM and vehicle speed?
  2. E2 CHECK OSS SENSOR SIGNAL CIRCUIT FOR POWER
    • Ignition OFF.
    • Disconnect: Transmission Vehicle Harness C1575.
    • Ignition ON.
    • Measure the voltage between the transmission vehicle harness C1575-15 and ground.
      Fig 1: Measuring Voltage Between Transmission Vehicle Harness C1575-15 And Ground
      G07962421Courtesy of FORD MOTOR CO.
    • Is the voltage less than 4.8 volts?
      • Yes  : GO to E3.
      • No  : GO to  E6.
  3. E3 CHECK THE OSS SENSOR SIGNAL CIRCUIT FOR AN OPEN
    • Ignition OFF.
    • Disconnect: PCM C175T.
    • Inspect the connector for damaged or pushed out terminals, corrosion, loose wires and missing or damaged seals.
    • Vehicles equipped with a 3.7L engine, measure the resistance between the transmission vehicle harness C1575-15 circuit VET26 (BN/GN) and PCM C175T-25.
      Fig 2: Measuring Resistance Between Transmission Vehicle Harness C1575-15 Circuit VET26 (BN/GN) And PCM C175T-25
      G07962422Courtesy of FORD MOTOR CO.
    • Disconnect: PCM C1381T.
    • Inspect the connector for damaged or pushed out terminals, corrosion, loose wires and missing or damaged seals.
    • Vehicles equipped with a 5.0L or 6.2L engine, measure the resistance between the transmission vehicle harness C1575-15 circuit VET26 (BN/GN) and PCM C1381T-14.
      Fig 3: Measuring Resistance Between Transmission Vehicle Harness C1575-15 Circuit VET26 (BN/GN) And PCM C1381T-14
      G07962423Courtesy of FORD MOTOR CO.
    • Disconnect: PCM C1551E.
    • Inspect the connector for damaged or pushed out terminals, corrosion, loose wires and missing or damaged seals.
    • Vehicles equipped with a 3.5L engine, measure the resistance between the transmission vehicle harness C1575-15 circuit RET04 (YE/OG) and PCM C1551E-12.

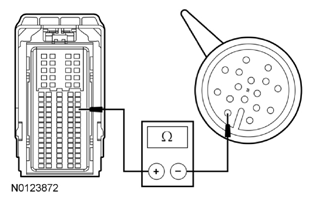

      Fig 4: Measuring Resistance Between Transmission Vehicle Harness C1575-15 Circuit RET04 (YE/OG) And PCM C1551E-12
      G07962424Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
      • Yes  : GO to E4.
      • No  : INSPECT and REPAIR transmission vehicle harness OSS signal circuit for an open. If an open circuit is not found, REPLACE the PCM, REFER to ELECTRONIC ENGINE CONTROLS . PERFORM the Solenoid Body Strategy Data Download procedure. REFER to Solenoid Body Strategy  . TEST the system for normal operation.
  4. E4 CHECK THE OSS SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND
    • Measure the resistance between the transmission vehicle harness C1575-15 and ground.
      Fig 5: Measuring Resistance Between Transmission Vehicle Harness C1575-15 And Ground
      G07962425Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms?
      • Yes  : GO to E5.
      • No  : INSPECT and REPAIR transmission vehicle harness OSS signal circuit for a short to ground. If a short to ground is not found, REPLACE the PCM, REFER to ELECTRONIC ENGINE CONTROLS . PERFORM the Solenoid Body Strategy Data Download procedure. REFER to Solenoid Body Strategy  . TEST the system for normal operation.
  5. E5 CHECK THE OSS SENSOR SIGNAL CIRCUIT FOR A SHORT TO POWER
    • Connect: PCM C175T.
    • Connect: PCM C1381T.
    • Connect: PCM C1551E.
    • Ignition ON.
    • Measure for voltage between the transmission vehicle harness C1575-15, and ground.
      Fig 6: Measuring Voltage Between Transmission Vehicle Harness C1575-15, And Ground
      G07962421Courtesy of FORD MOTOR CO.
    • Is voltage greater than 5.1 volts?
      • Yes  : INSPECT and REPAIR transmission vehicle harness OSS signal circuit for a short to power. If a short to power is not found, REPLACE the PCM, REFER to ELECTRONIC ENGINE CONTROLS . PERFORM the Solenoid Body Strategy Data Download procedure. REFER to Solenoid Body Strategy  . TEST the system for normal operation.
      • No  : GO to E6.
  6. E6 CHECK THE OSS SENSOR GROUND CIRCUIT
    • Measure the voltage between the transmission vehicle harness C1575-15 and C1575-5.
      Fig 7: Measuring Voltage Between Transmission Vehicle Harness C1575-15 And C1575-5
      G07962427Courtesy of FORD MOTOR CO.
    • Is voltage less than 4.8 volts?
      • Yes  : REPAIR the transmission vehicle harness signal return circuit for an open. If an open is not found, REPLACE the PCM, REFER to ELECTRONIC ENGINE CONTROLS . PROGRAM the PCM with the latest calibration level. PERFORM the Solenoid Body Strategy Data Download procedure. REFER to Solenoid Body Strategy  . TEST the system for normal operation.
      • No  : REPLACE the molded leadframe, REFER to Main Control  . CLEAR the DTCs. TEST the system for normal operation.
