Electrical Operation
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Solenoid operation:

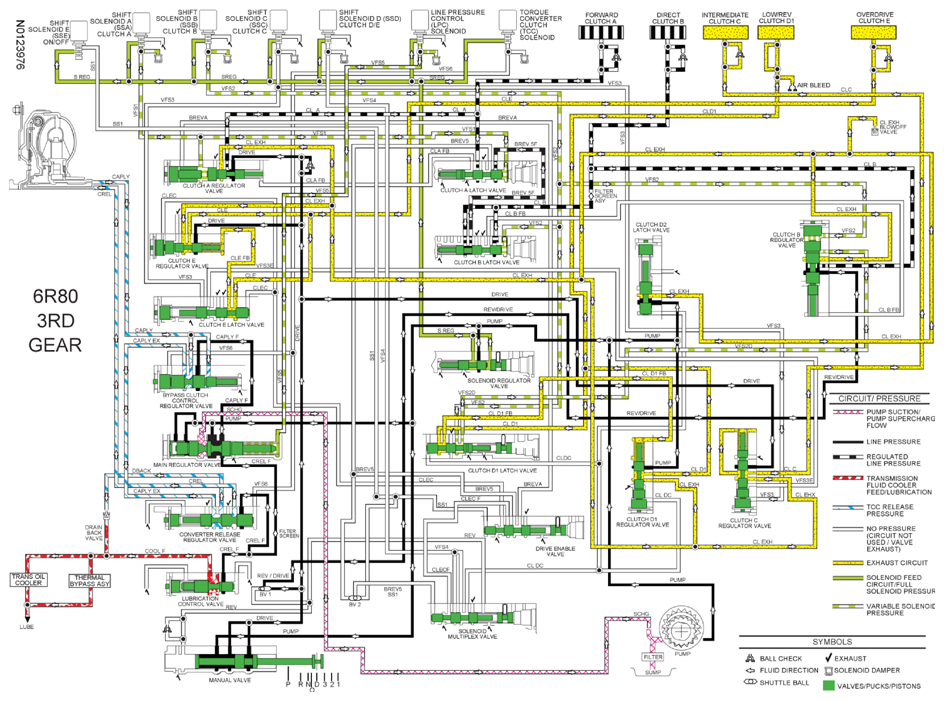

3RD GEAR SOLENOID OPERATION CHART
| Selector Lever Position | PCM Commanded Gear | Shift Solenoid | TCC NL | ||||
|---|---|---|---|---|---|---|---|
| SSA NL (1, 2, 3, 4) | SSB NH (3, 5, R) | SSC NL (CB 2, 6) | SSD NH (CB L/R 4, 5, 6) | SSE NC | |||
| D and 3 | 3 | On | Off | Off | On | Off | Off |
CB = Clutch brake
NC = Normally closed
NH = Normally high
NL = Normally low
For solenoid information, refer to Transmission Electronic Control System .
