Front End Accessory Drive (FEAD), Crankshaft Pulley and Crankshaft Front Seal
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

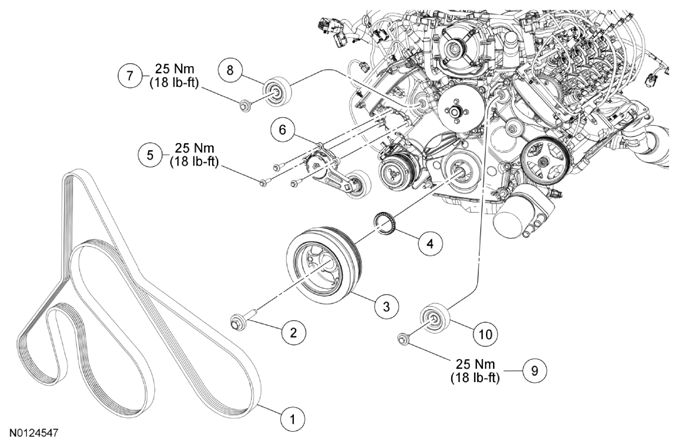

Fig 1: Exploded View Of Front End Accessory Drive (FEAD), Crankshaft Pulley And Crankshaft Front Seal With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | W701512 | Crankshaft pulley bolt |
| 3 | 6316 | Crankshaft pulley |
| 4 | 6700 | Crankshaft front seal |
| 5 | N808920 | Accessory drive belt tensioner bolt (3 required) |
| 6 | 6B209 | Accessory drive belt tensioner |
| 7 | N808102 | RH accessory drive belt idler pulley bolt |
| 8 | 19A216 | RH accessory drive belt idler pulley |
| 9 | N808102 | LH accessory drive belt idler pulley bolt |
| 10 | 19A216 | LH accessory drive belt idler pulley |
