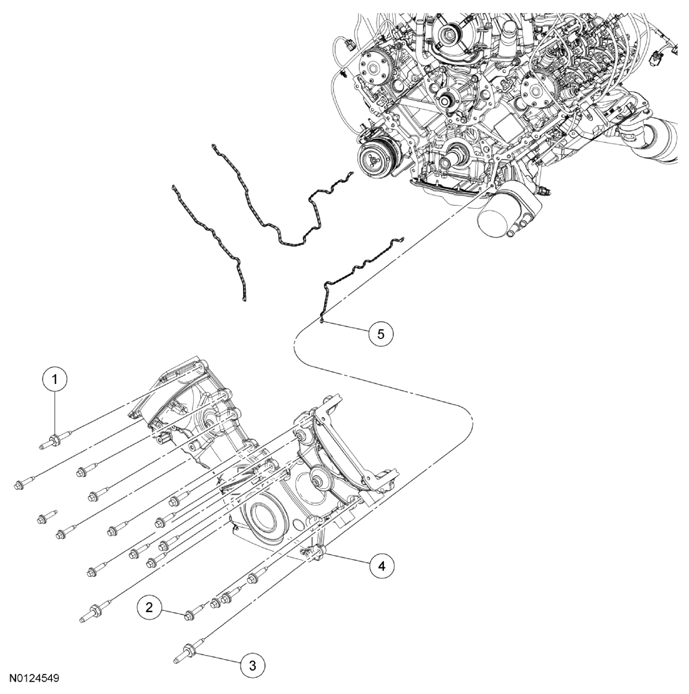

Engine Front Cover and Gaskets: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W713461 |
Engine front cover stud |
| 2 |
W713261 |
Engine front cover bolt (17 required) |
| 3 |
W713462 |
Engine front cover stud (2 required) |
| 4 |
6C086 |
Engine front cover |
| 5 |
- |
Engine front cover gasket (part of 6C086) (3 required) |
