Coolant Pump Pulley, Power Steering Pump and Front Oil Pan Bolts
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

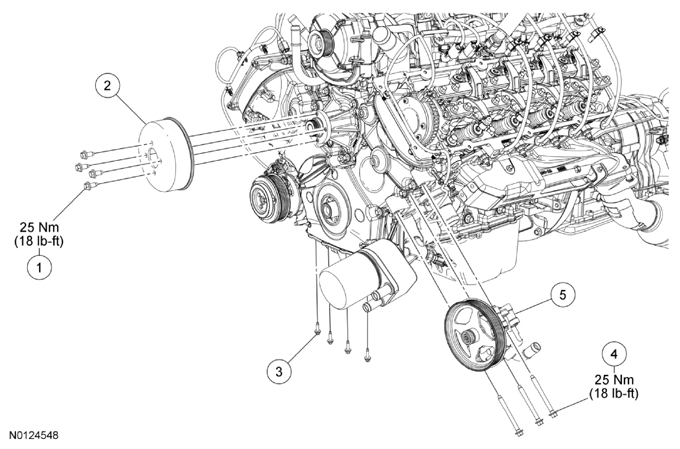

Fig 1: Exploded View Of Coolant Pump Pulley, Power Steering Pump And Front Oil Pan Bolts With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | N806282 | Coolant pump pulley bolt (4 required) |
| 2 | 8A528 | Coolant pump pulley |
| 3 | W701605 | Oil pan bolt (4 required) |
| 4 | - | Power steering pump bolts (3 required) |
| 5 | - | Power steering pump |
