Valve Cover - LH: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Installation of new seals is only required if damaged seals were removed.
    Fig 1: Installing Spark Plug Tube Seal Using VCT Spark Plug Tube Seal Installer And Handle
    G07408854Courtesy of FORD MOTOR CO.
  1. Using the VCT Spark Plug Tube Seal Installer and Handle, install new spark plug tube seals.
    2. NOTE: Installation of new seals is only required if damaged seals were removed.
    Fig 2: Installing VCT Variable Force Solenoid Seal Using Differential Bearing Cone Installer And Handle
    G07408855Courtesy of FORD MOTOR CO.
  2. Using the Differential Bearing Cone Installer and Handle, install new VCT variable force solenoid seal(s).
    3. NOTE: If the valve cover is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.
    Fig 3: Applying 8 mm (0.31 in) Bead Of Silicone Gasket And Sealant To Engine Front Cover-To-LH Cylinder Head Joints
    G07408856Courtesy of FORD MOTOR CO.
  3. Apply an 8 mm (0.31 in) bead of silicone gasket and sealant to the engine front cover-to-LH cylinder head joints.
  4. Position the LH valve cover and new gasket on the cylinder head.
    • Tighten the bolts in the sequence shown in illustration to 10 Nm (89 lb-in).
      Fig 4: Identifying LH Valve Cover Bolts Tightening Sequence
      G07408857Courtesy of FORD MOTOR CO.
  5. Install the oil level indicator tube.
    • Push the oil level indicator tube into the valve cover until it clicks into place.
  6. Install the oil level indicator.
  7. Connect the 2 LH VCT variable force solenoid electrical connectors.
    • Attach the 10 wiring harness retainers.

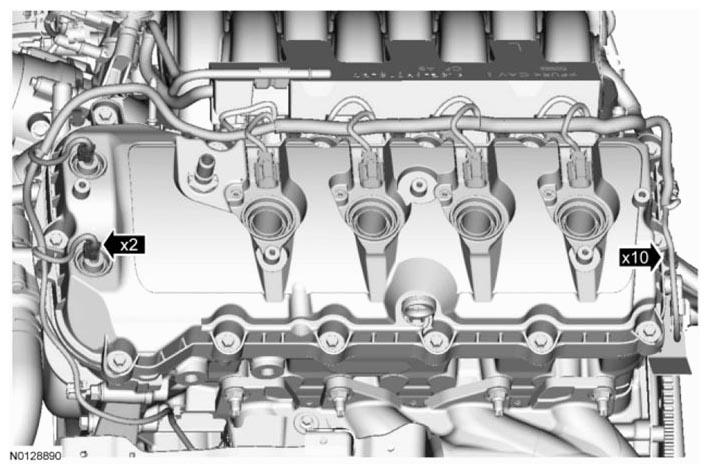

      Fig 5: Locating LH VCT Variable Force Solenoid Electrical Connectors And Wiring Harness Retainers
      G07408858Courtesy of FORD MOTOR CO.
  8. Install the LH ignition coils. For additional information, REFER to ENGINE IGNITION - 5.0L (4V) .
  9. Install the crankcase ventilation tube. For additional information, refer to the quick connect coupling procedure in FUEL SYSTEM - GENERAL INFORMATION .
    Fig 6: Identifying Crankcase Ventilation Tube
    G07408849Courtesy of FORD MOTOR CO.
  10. Install the Air Cleaner (ACL) outlet pipe and ACL cover assembly. For additional information, REFER to INTAKE AIR DISTRIBUTION & FILTERING .
