Oil Pump: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the inner rotor of the oil pump assembly to align the flats on the crankshaft and slip the oil pump over the crankshaft until seated against the block.
    • Rotate the oil pump until the bolt holes are aligned to the block and install the fasteners.
  2. NOTE: Oil pump must be held against the cylinder block until all bolts are tightened.
  3. Tighten the fasteners in the sequence shown in illustration in 3 stages:
    • Stage 1: Hand tighten.
    • Stage 2: Tighten the bolt (1) to 10 Nm (89 lb-in), the stud bolt (2) to 25 Nm (18 lb-ft), the bolt (3) to 10 Nm (89 lb-in) and the stud bolt (4) to 20 Nm (177 lb-in).
    • Stage 3: Tighten the bolt (1) an additional 45 degrees, the stud bolt (2) an additional 75 degrees, the bolt (3) an additional 45 degrees and the stud bolt (4) an additional 60 degrees.

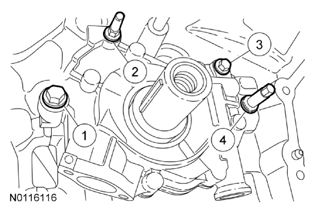

      Fig 1: Identifying Oil Pump Bolts Tightening Sequence
      G07960703Courtesy of FORD MOTOR CO.
  4. Install the oil pump screen and pickup tube. For additional information, refer to ENGINE LUBRICATION COMPONENTS - EXPLODED VIEW  and OIL PUMP SCREEN AND PICKUP TUBE  .
  5. Install the crankshaft sprocket with the flange facing forward.
    Fig 2: Locating Crankshaft Sprocket
    G07474090Courtesy of FORD MOTOR CO.
  6. Install the LH primary timing chain.
    • Align the colored link on the timing chain with the timing mark on the LH VCT assembly.
      Fig 3: Aligning Colored Link On Timing Chain With Timing Mark On LH VCT Assembly
      G07408962Courtesy of FORD MOTOR CO.
  7. Align the remaining colored link on the timing chain with the timing mark on the crankshaft sprocket.
    Fig 4: Aligning Remaining Colored Link On Timing Chain With Timing Mark On Crankshaft Sprocket
    G07408963Courtesy of FORD MOTOR CO.
  8. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the LH timing chain guide. Return the crankshaft keyway to the 9 o'clock position after installing the LH timing chain guide.
  9. Install the LH timing chain guide and bolt.
    • Tighten to 10 Nm (89 lb-in).
      Fig 5: Locating Bolt And LH Timing Chain Guide
      G07408950Courtesy of FORD MOTOR CO.
  10. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the LH timing chain tensioner arm. Return the crankshaft keyway to the 9 o'clock position after installing the LH timing chain tensioner arm.
    Fig 6: Locating LH Timing Chain Tensioner Arm
    G07408949Courtesy of FORD MOTOR CO.
    NOTE: Complete the following 3 steps on both the LH and RH primary timing chain tensioners.
  11. Install the LH timing chain tensioner arm.
  12. NOTE: Do not compress the ratchet assembly or damage to the tensioner will occur.
    Fig 7: Compressing Primary Timing Chain Tensioner Plunger, Using An Edge Of Vise
    G07408966Courtesy of FORD MOTOR CO.
  13. Compress the primary timing chain tensioner plunger, using an edge of a vise.
  14. Using a small screwdriver or pick, push back and hold the ratchet mechanism, then push the ratchet arm back into the tensioner housing.
    Fig 8: Pushing Ratchet Arm Back Into Tensioner Housing Using Small Screwdriver Or Pick
    G07408967Courtesy of FORD MOTOR CO.
  15. Install a suitable pin into the hole of the tensioner housing to hold the ratchet assembly and plunger in place during installation.
    Fig 9: Installing Suitable Pin Into Hole Of Tensioner Housing To Hold Ratchet Assembly And Plunger
    G07408968Courtesy of FORD MOTOR CO.
  16. Install the LH primary timing chain tensioner and 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
    • Remove the holding pin from the tensioner.
      Fig 10: Locating LH Primary Timing Chain Tensioner, Bolts And Holding Pin
      G07408969Courtesy of FORD MOTOR CO.
  17. Using the crankshaft holding tool, rotate the crankshaft clockwise until the crankshaft keyway is at the 12 o'clock position.
    Fig 11: Rotating Crankshaft Clockwise Until Crankshaft Keyway Is At 12 O'Clock Position Using Crankshaft Holding Tool
    G07408970Courtesy of FORD MOTOR CO.
  18. Install the RH primary timing chain.
    • Align the colored link on the timing chain with the timing mark on the RH VCT assembly.
      Fig 12: Aligning Colored Link On Timing Chain With Timing Mark On RH VCT Assembly
      G07408975Courtesy of FORD MOTOR CO.
  19. Align the remaining colored link on the timing chain with the timing mark on the crankshaft sprocket.
    Fig 13: Aligning Remaining Colored Link On Timing Chain With Timing Mark On Crankshaft Sprocket
    G07408976Courtesy of FORD MOTOR CO.
  20. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the RH timing chain guide. Return the crankshaft keyway to the 12 o'clock position after installing the RH timing chain guide.
  21. Install the RH timing chain guide and bolt.
    • Tighten to 10 Nm (89 lb-in).

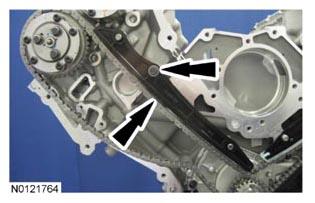

      Fig 14: Locating Bolts And RH Primary Timing Chain Tensioner
      G07960716Courtesy of FORD MOTOR CO.
  22. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the RH timing chain tensioner arm. Return the crankshaft keyway to the 12 o'clock position after installing the RH timing chain tensioner arm.
    Fig 15: Locating RH Timing Chain Tensioner Arm
    G07408940Courtesy of FORD MOTOR CO.
  23. Install the RH timing chain tensioner arm.
  24. Install the RH primary timing chain tensioner and 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
    • Remove the holding pin from the tensioner.
      Fig 16: Locating RH Primary Timing Chain Tensioner, Bolts And Holding Pin
      G07408979Courtesy of FORD MOTOR CO.
  25. With the crankshaft keyway still at the 12 o'clock position, verify the timing mark alignment is correct.
    Fig 17: Locating Timing Mark Correct Alignment
    G07408980Courtesy of FORD MOTOR CO.
  26. Install the engine front cover. For additional information, refer to ENGINE FRONT COVER  .
