Intake Manifold: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Metal Surface Prep ZC-31-A	-

NOTE: Refer to the on-line Workshop Information to view this illustration as an interactive exploded view, requires Adobe® Acrobat® 8.0 or higher.

NOTE: Refer to the on-line Workshop Information to learn about using an Interactive Illustration.

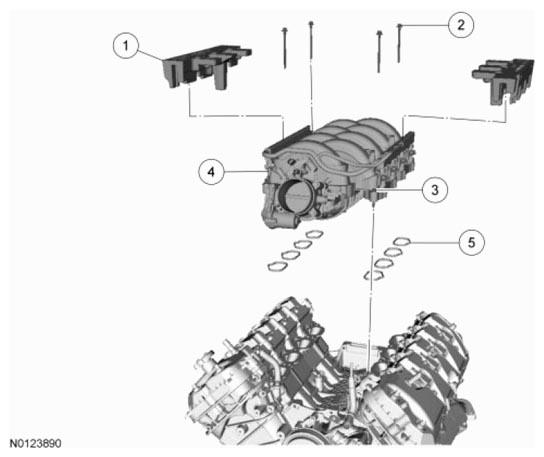

Fig 1: Identifying Fuel Rail Insulator, Intake Manifold And Bolts

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6P013	Fuel rail insulator (2 required)
2	W714864	Fuel rail bolt (4 required)
3	9Y450	Intake manifold bolt (part of 9424) (6 required)
4	9424	Intake manifold
5	9439	Intake manifold gasket
