Intake Manifold: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris if found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

NOTE: Clean the sealing surfaces with metal surface prep. Follow the directions on the packaging. Inspect the mating surfaces.

Using new gaskets, install the intake manifold.

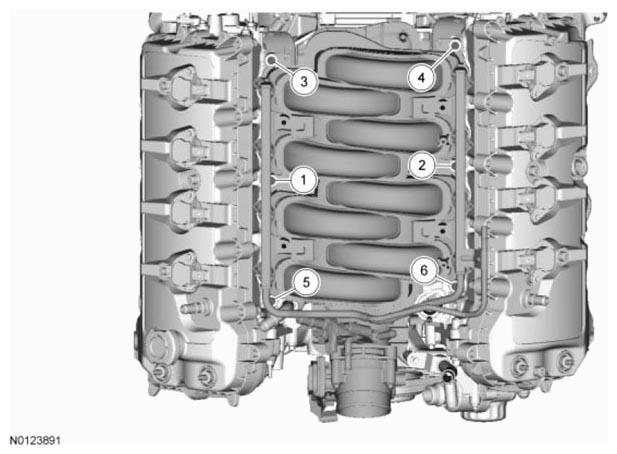

- Tighten the 6 intake manifold bolts in the sequence shown in illustration in 2 stages.
  - Stage 1: Tighten to 10 Nm (89 lb-in).
  - Stage 2: Tighten an additional 45 degrees.

    Fig 1: Identifying Intake Manifold Bolts Tightening Sequence
    Courtesy of FORD MOTOR CO.

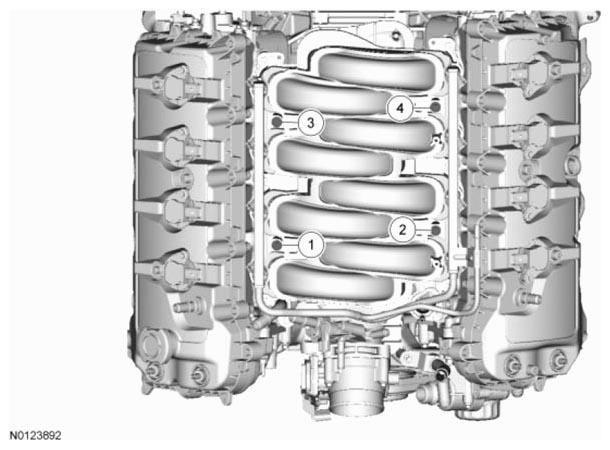

Install the 4 fuel rail bolts.
- Tighten in the sequence shown in illustration in 3 stages.
  - Stage 1: Hand tighten.
  - Stage 2: Tighten to 10 Nm (89 lb-in).
  - Stage 2: Tighten an additional 90 degrees.

    Fig 2: Identifying Fuel Rail Bolts Tightening Sequence
    Courtesy of FORD MOTOR CO.

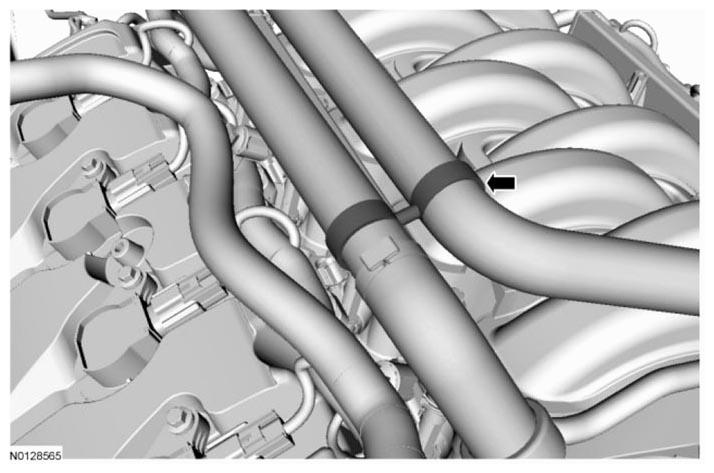

Position the heater hoses and attach the heater hose retainer.

Fig 3: Locating Heater Hose Retainer
Courtesy of FORD MOTOR CO.

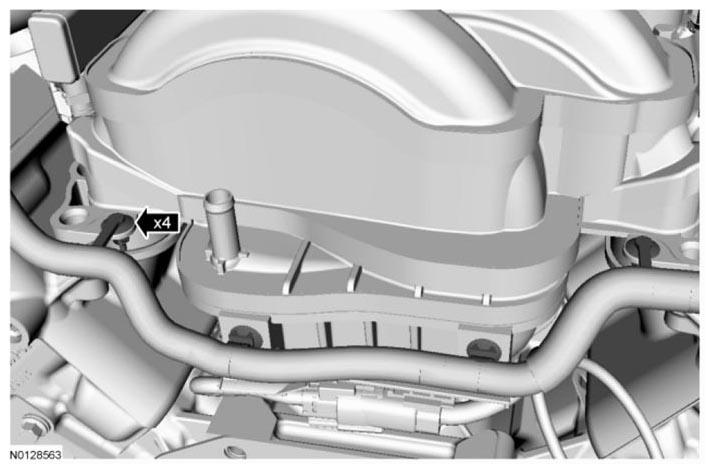

Attach the 4 wiring harness retainers to the rear of the intake manifold.

Fig 4: Locating Wiring Harness Retainers To Rear Of Intake Manifold
Courtesy of FORD MOTOR CO.

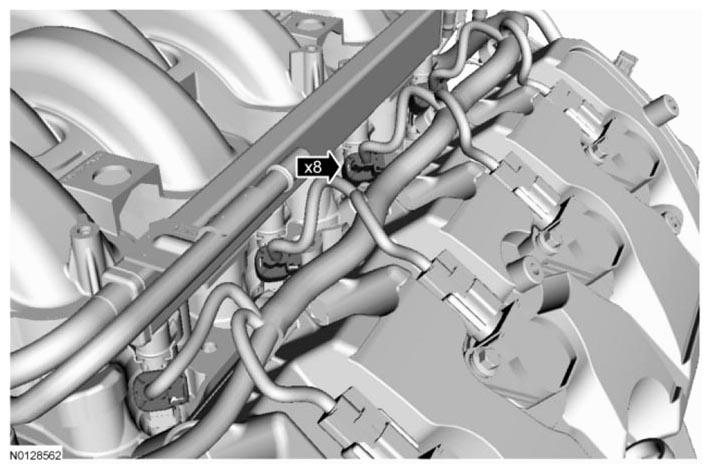

NOTE: The 4 LH fuel injector electrical connectors are shown in illustration, the 4 RH fuel injector electrical connectors are similar.

Fig 5: Locating Fuel Injector Electrical Connectors

Courtesy of FORD MOTOR CO.

Connect the 8 fuel injector electrical connectors.

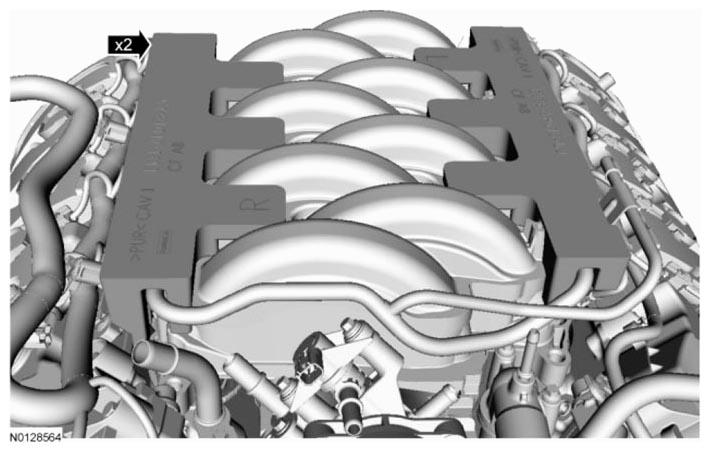

Install the LH and RH fuel rail insulators.

Fig 6: Identifying LH And RH Fuel Rail Insulators
Courtesy of FORD MOTOR CO.

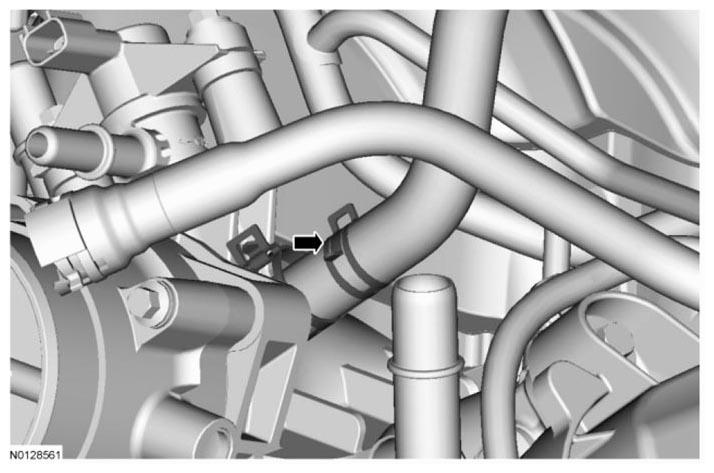

Connect the vacuum tube to the intake manifold.

Fig 7: Locating Intake Manifold Vacuum Tube Clamp
Courtesy of FORD MOTOR CO.

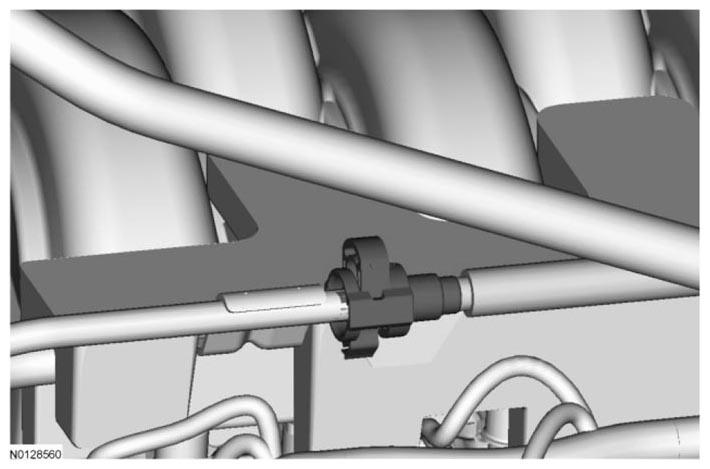

Connect the fuel supply tube. For additional information, refer to the quick connect coupling procedure in FUEL SYSTEM - GENERAL INFORMATION .

Fig 8: Identifying Fuel Supply Tube
Courtesy of FORD MOTOR CO.

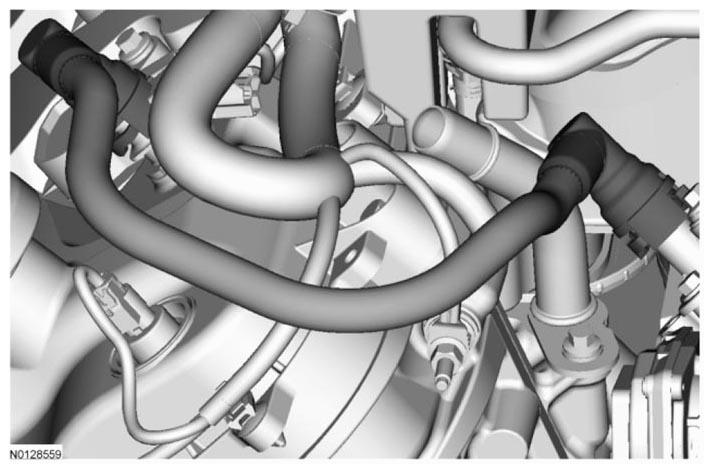

Install the crankcase ventilation tube. For additional information, refer to the quick connect coupling procedure in FUEL SYSTEM - GENERAL INFORMATION .

Fig 9: Identifying Crankcase Ventilation Tube
Courtesy of FORD MOTOR CO.

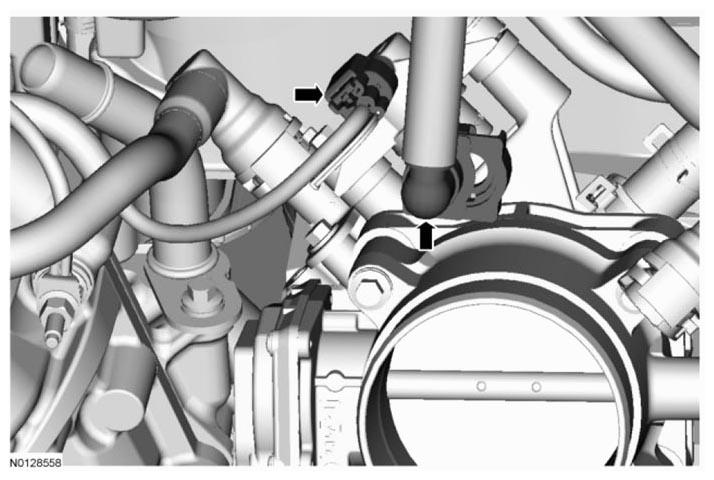

Connect the Evaporative Emission (EVAP) purge valve tube and electrical connector. For additional information, refer to the quick connect coupling procedure in FUEL SYSTEM - GENERAL INFORMATION .
- Attach the EVAP tube retainer to the fuel rail.

  Fig 10: Locating Evaporative Emission Canister Purge Valve Electrical Connector And EVAP Tube Retainer
  Courtesy of FORD MOTOR CO.

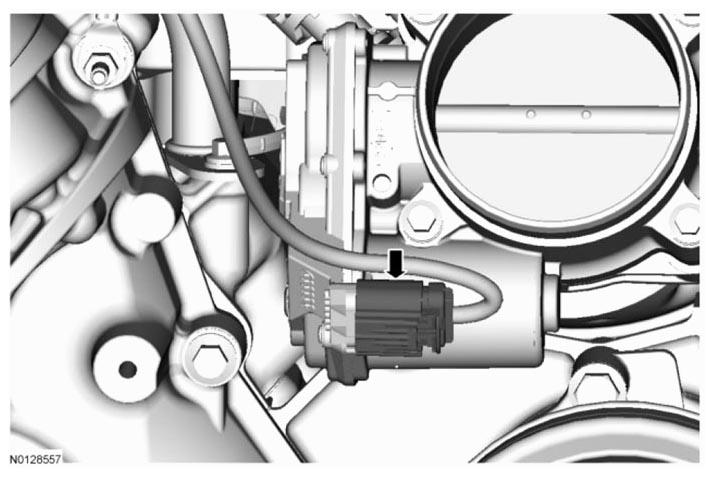

Connect the TB electrical connector.

Fig 11: Locating Throttle Body Electrical Connector
Courtesy of FORD MOTOR CO.
Install the Air Cleaner (ACL) outlet pipe. For additional information, REFER to INTAKE AIR DISTRIBUTION & FILTERING .
