Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transmission. For additional information, REFER to AUTOMATIC TRANSAXLE/TRANSMISSION - 6R80 .

NOTE: The flexplate bolts are torque-to-yield design and are not reusable.

Remove the 8 bolts and the flexplate.
- Discard the bolts.
- To install, tighten in the sequence shown in illustration in 2 stages.
  - Stage 1: Tighten to 20 Nm (177 lb-in).
  - Stage 2: Tighten an additional 60 degrees.

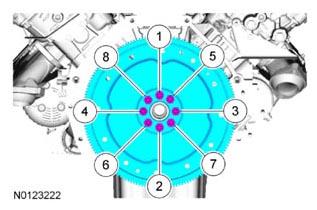

    Fig 1: Identifying Flexplate Bolts Tightening Sequence
    Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
