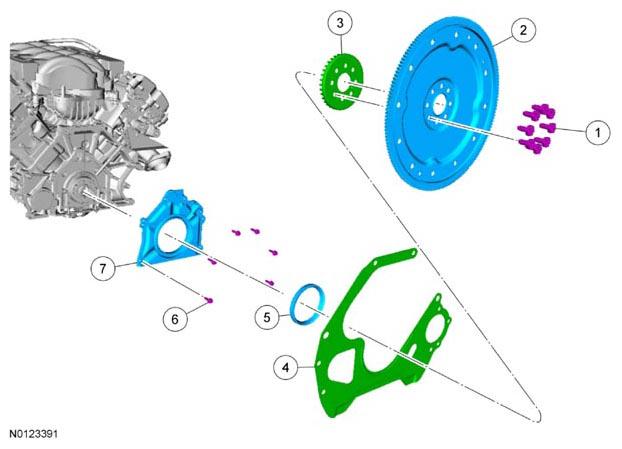

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6379 | Flexplate bolt (8 required) |
| 2 | 6375 | Flexplate |
| 3 | 12A227 | Crankshaft sensor ring |
| 4 | 6A373 | Separator plate |
| 5 | 6701 | Crankshaft rear seal |
| 6 | W714962 | Crankshaft rear seal retainer plate bolt (6 required) |
| 7 | 6K318 | Crankshaft rear seal retainer plate |
- Refer to the procedures and/or exploded views in this information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
