Exhaust Manifold - RH: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |

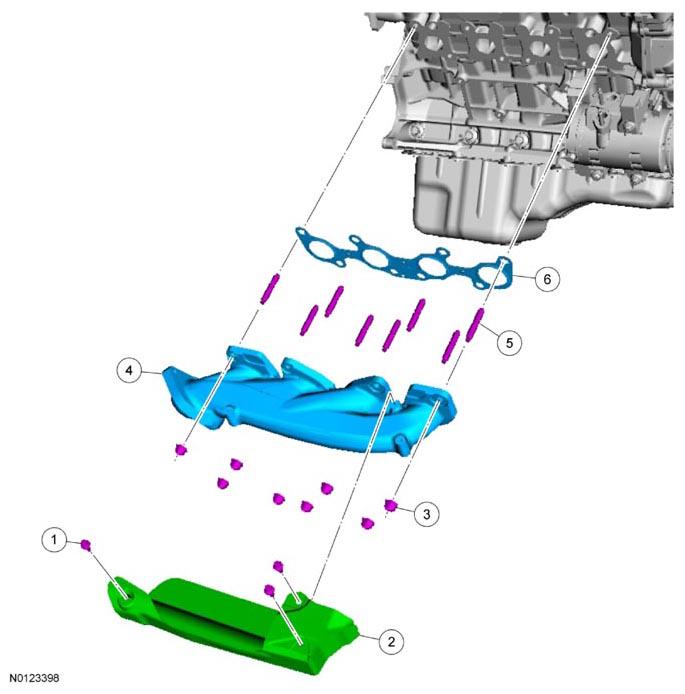

| Item | Part Number | Description |
|---|---|---|
| 1 | W714133 | RH exhaust manifold heat shield bolts (3 required) - 12 Nm (106 lb-in) 2 9A462 RH exhaust manifold heat shield |
| 3 | W714870 | RH exhaust manifold nuts (8 required) |
| 4 | 9430 | RH exhaust manifold |
| 5 | W714869 | RH exhaust manifold studs (8 required) - 25 Nm (18 lb-ft) |
| 6 | 9448 | RH exhaust manifold gasket |
