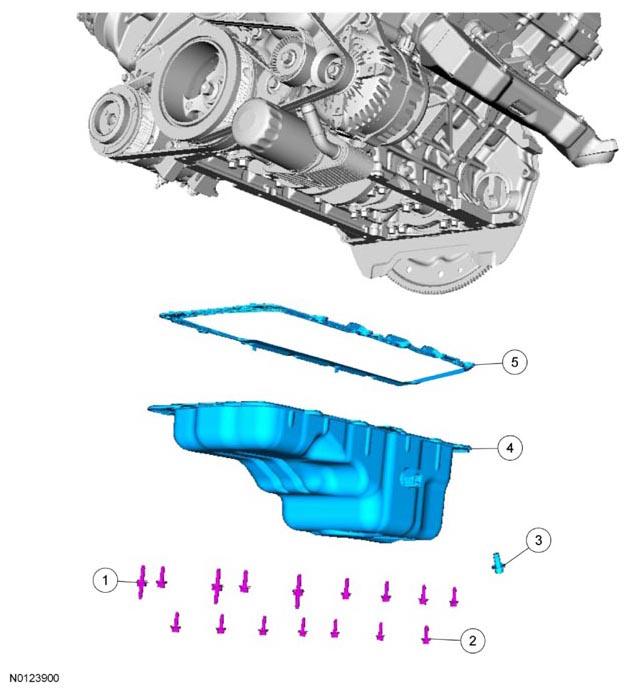

Oil Pan and Gasket
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W714963 |
Oil pan stud bolt (3 required) |
| 2 |
W714962 |
Oil pan bolt (13 required) |
| 3 |
- |
Oil drain plug (part of 6675) - 26 Nm (19 lb-ft) |
| 4 |
6675 |
Oil pan |
| 5 |
6710 |
Oil pan gasket |
