Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the seal lips and bore with clean engine oil prior to installation.

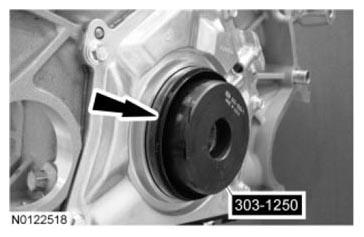

    Fig 1: Locating Crankshaft Rear Seal Onto Rear Main Seal Installer
    G07474330Courtesy of FORD MOTOR CO.
  1. Position the Rear Main Seal Installer onto the end of the crankshaft and slide a new crankshaft rear seal onto the tool.
  2. Using the Rear Main Seal Installer and Handle, install the new crankshaft rear seal.

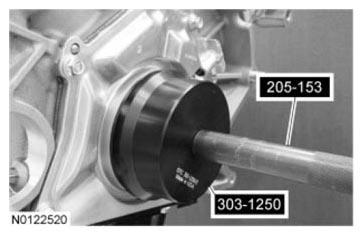

    Fig 2: Installing Crankshaft Rear Seal Using Rear Main Seal Installer And Handle
    G07474331Courtesy of FORD MOTOR CO.
  3. Install the crankshaft sensor ring.
  4. Install the engine separator plate.
  5. Install the flexplate. For additional information, refer to FLEXPLATE OR FLYWHEEL AND CRANKSHAFT REAR SEAL - EXPLODED VIEW  and FLEXPLATE  .
